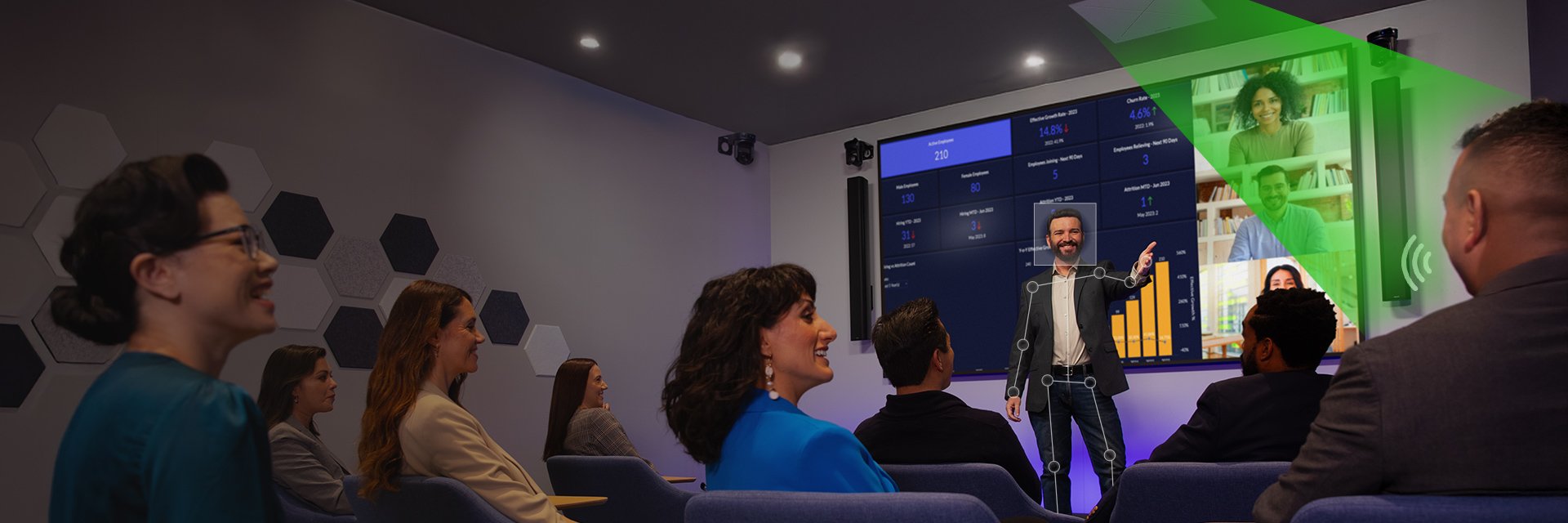

Q-SYS VisionSuite elevates collaboration in high-impact spaces.
Deliver dynamic, real-time camera switching without creating camera presets. Elevate the presentation experience with autonomous full-body presenter tracking driven by advanced computer vision. Tie it all together to automate the full-room experience with the power of Q-SYS.

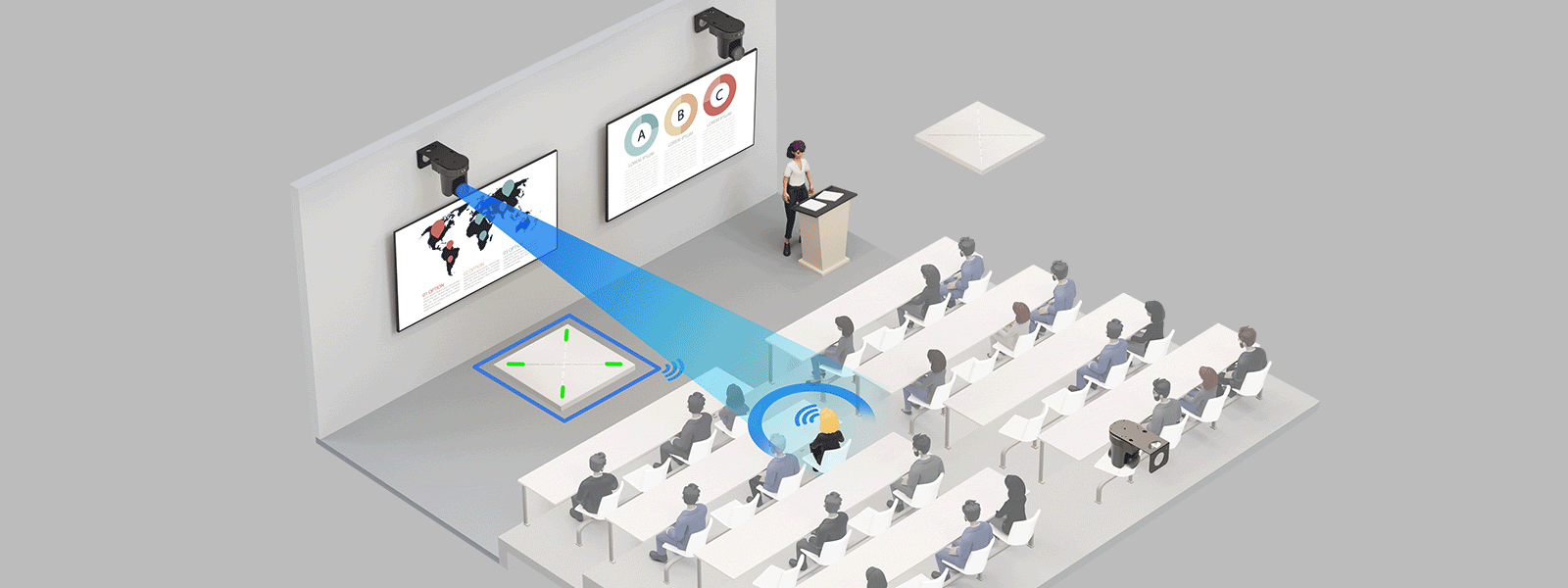

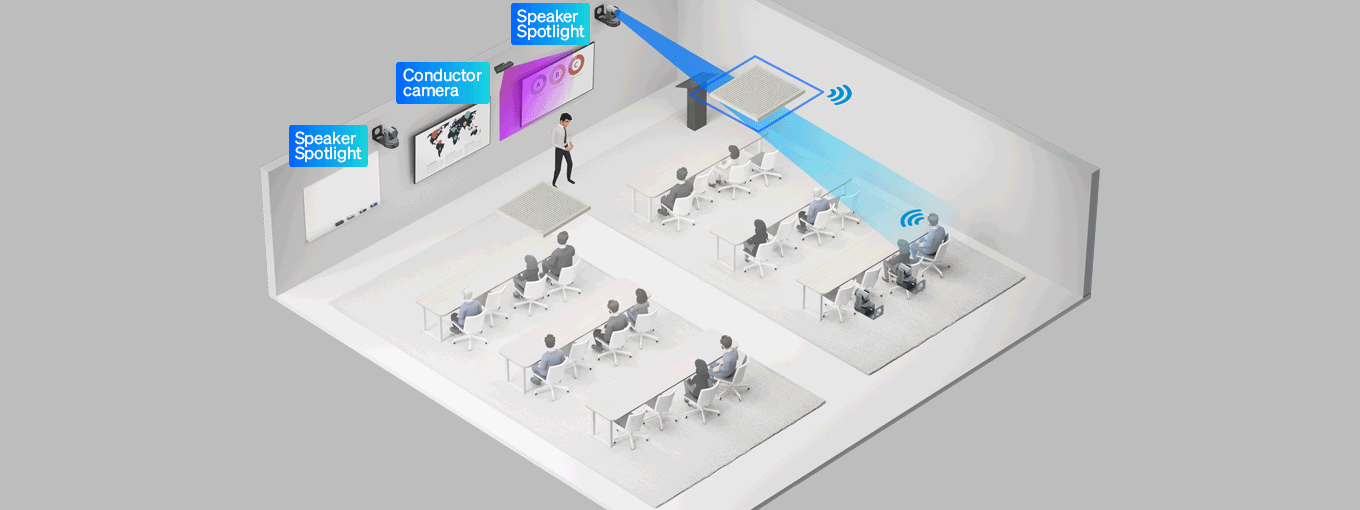

スピーカースポットライト
Dynamic, real-time camera automation that removes the need for camera presets. Leverages both audio location data to locate the active talker and vision-assisted framing to ensure the optimal framing is always seen by the far-end.

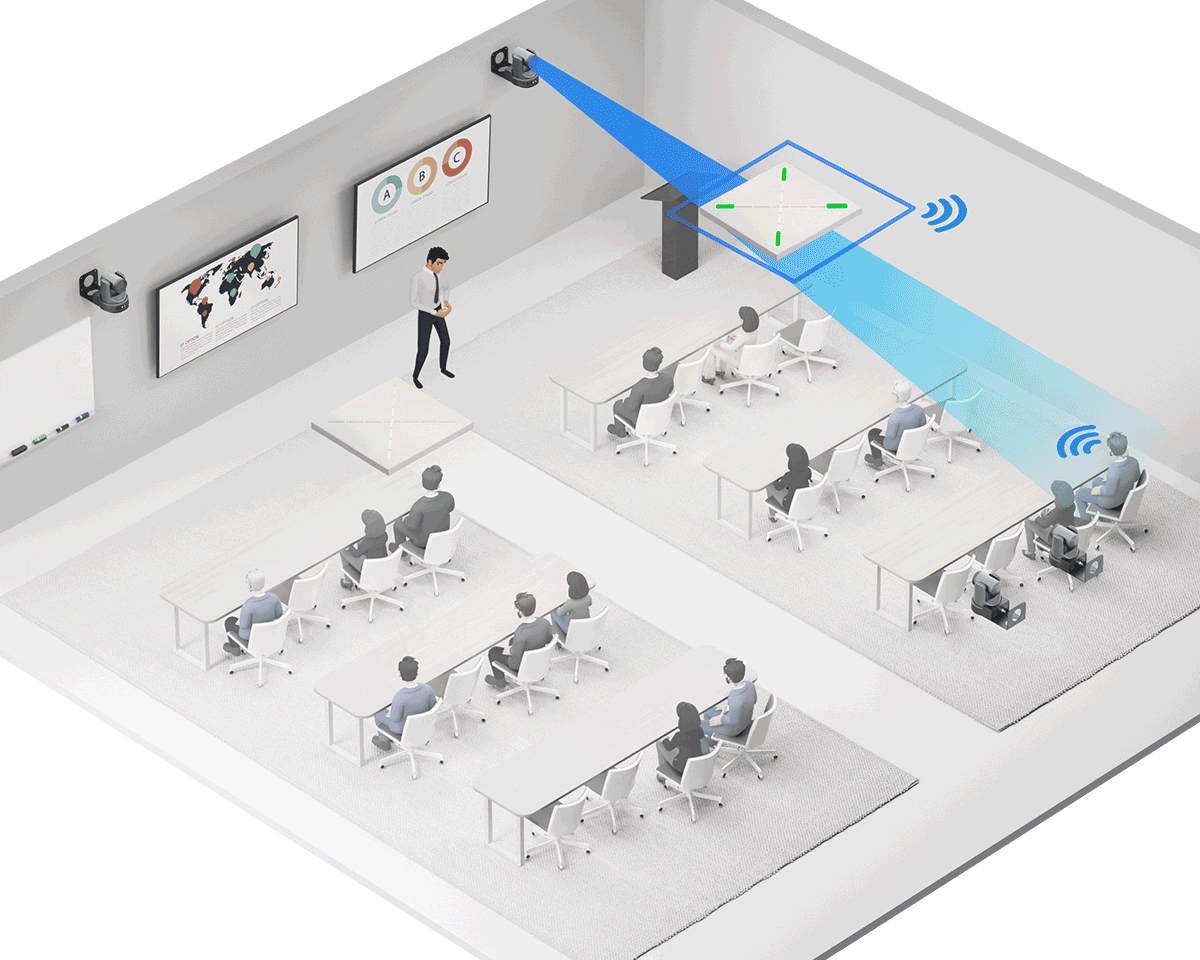

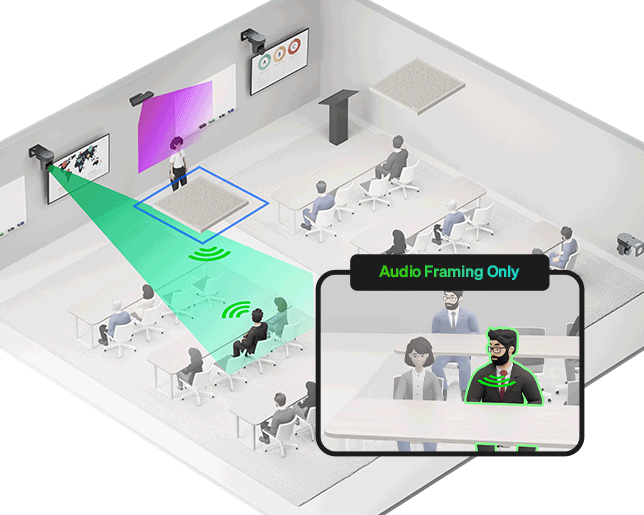

Vision-assisted Framing
Leverages the vision data from a Conductor camera to provide more accurate talker location in addition to the audio location data provided by the microphone.

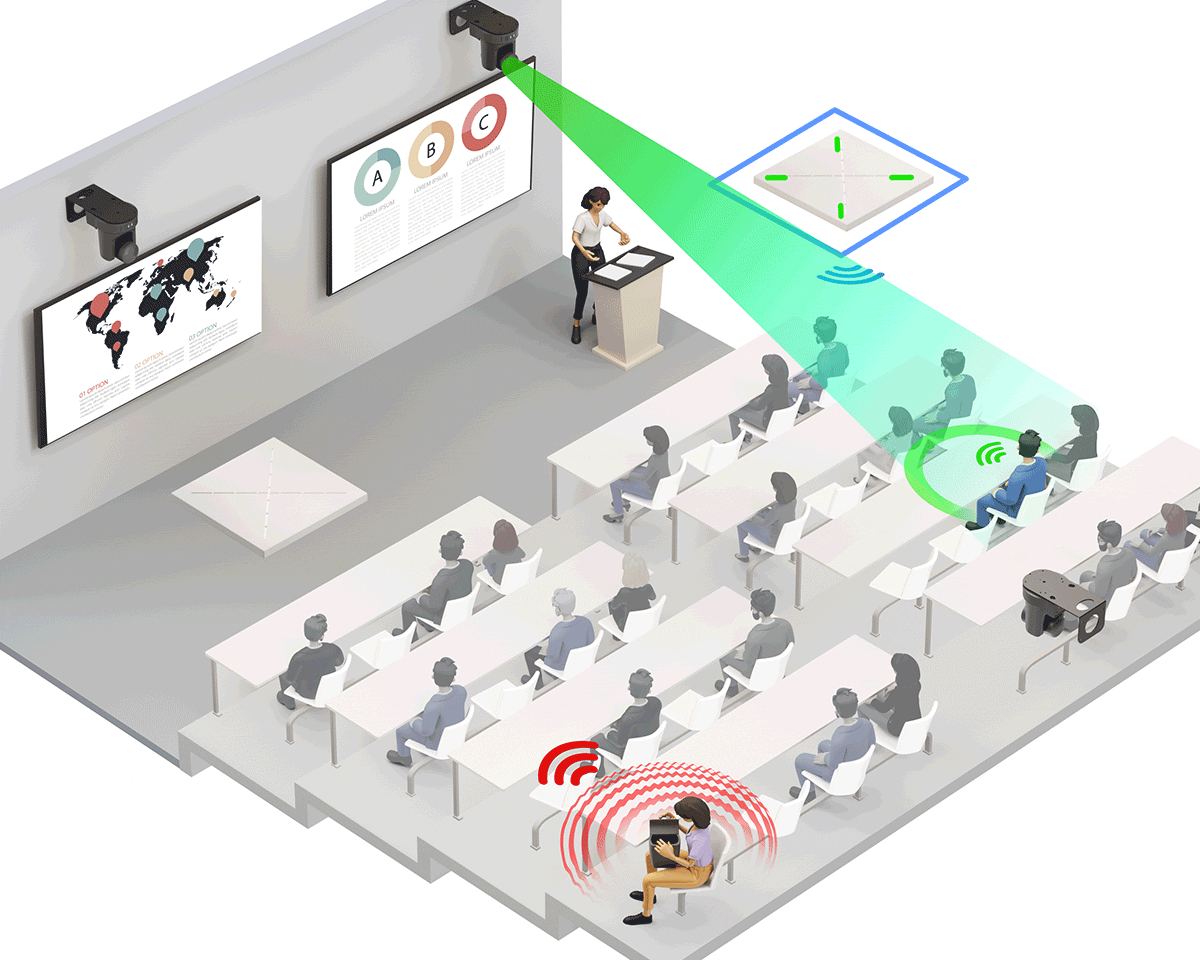

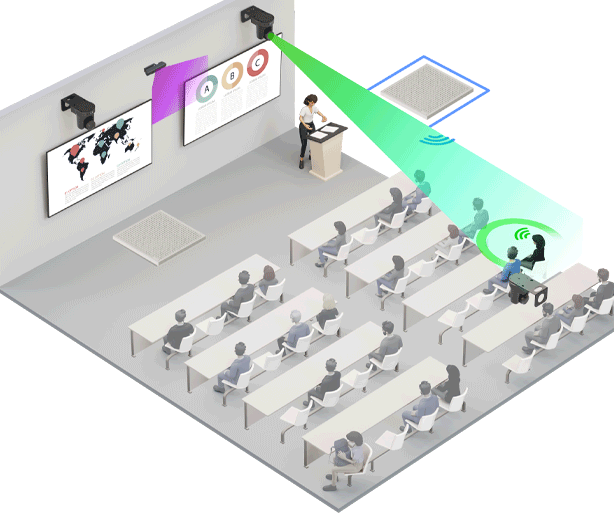

音声アクティビティ検出

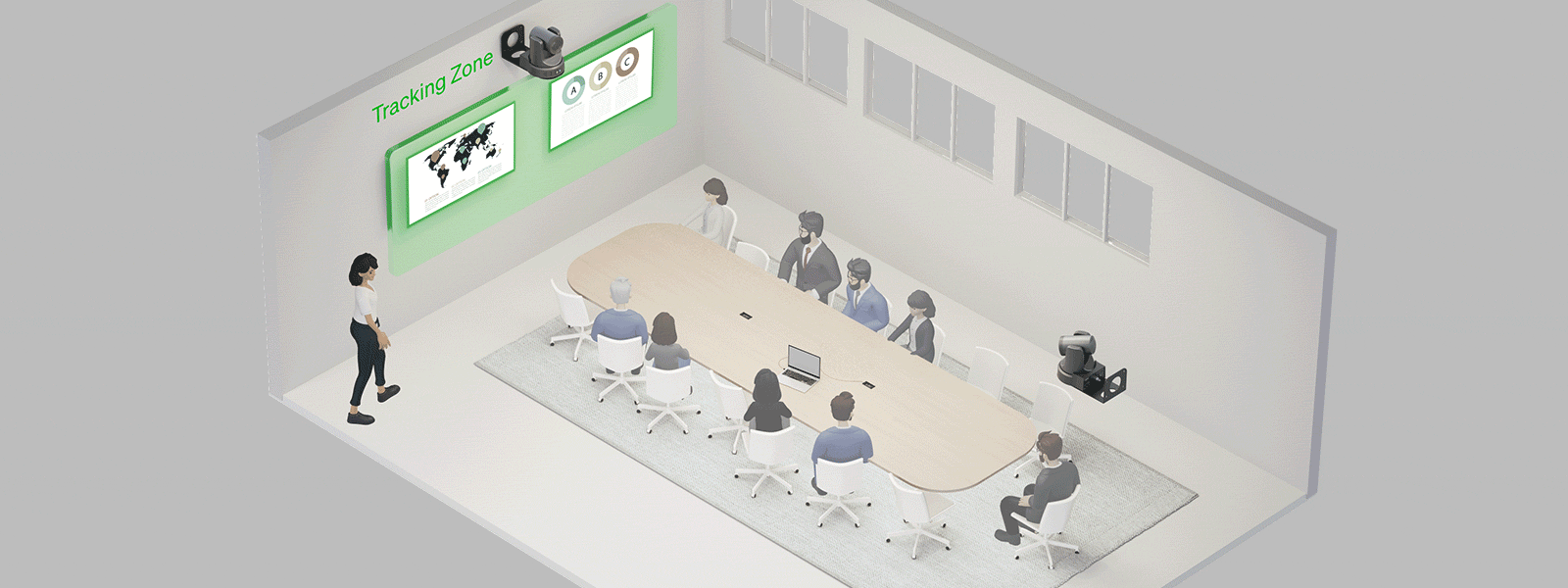

プレゼンター スポットライト
Smooth, cinematic camera framing and tracking for the presenter based on advanced computer vision.

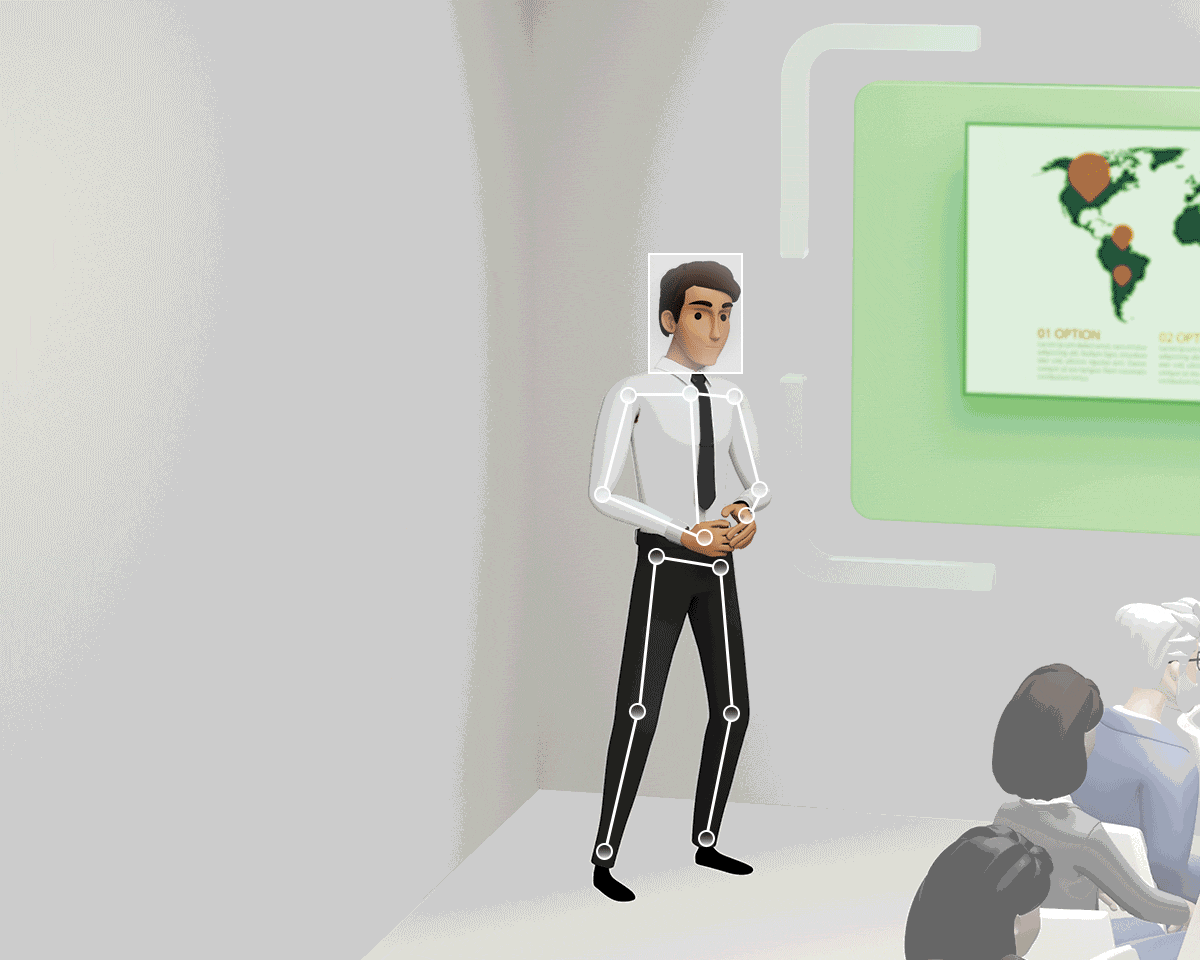

全身プレゼンターの追尾
フルボディ認識に基づいたプレゼンターの自動追跡により、スムーズで予測的なカメラモーションとビジョン主導の自動化が可能になります。

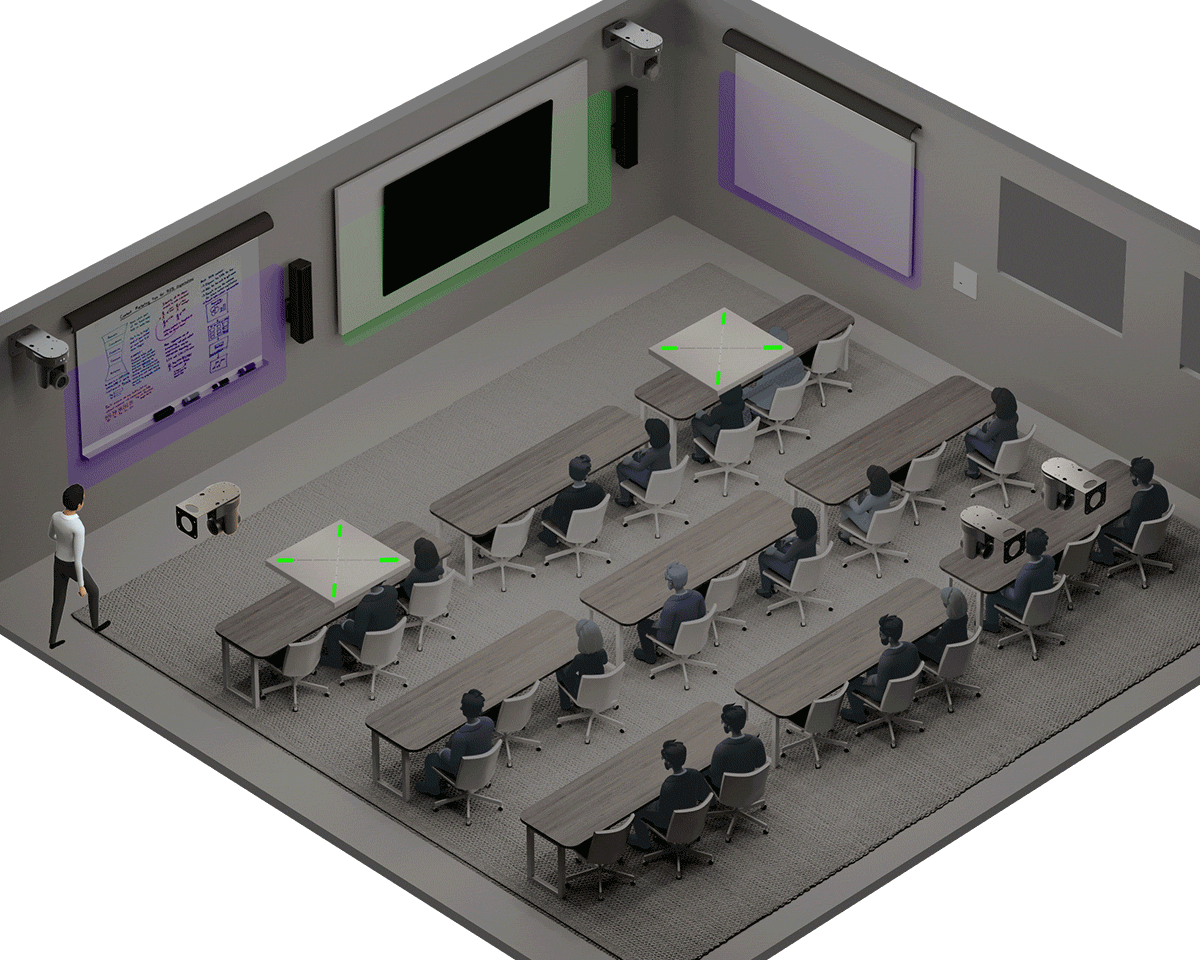

完全なルームオートメーション
Trigger vision-based or audio-based automations based on how the space is being utilized with the Q-SYS control engine. Shift lighting, toggle displays, activate mics, audio, and control third-party devices.

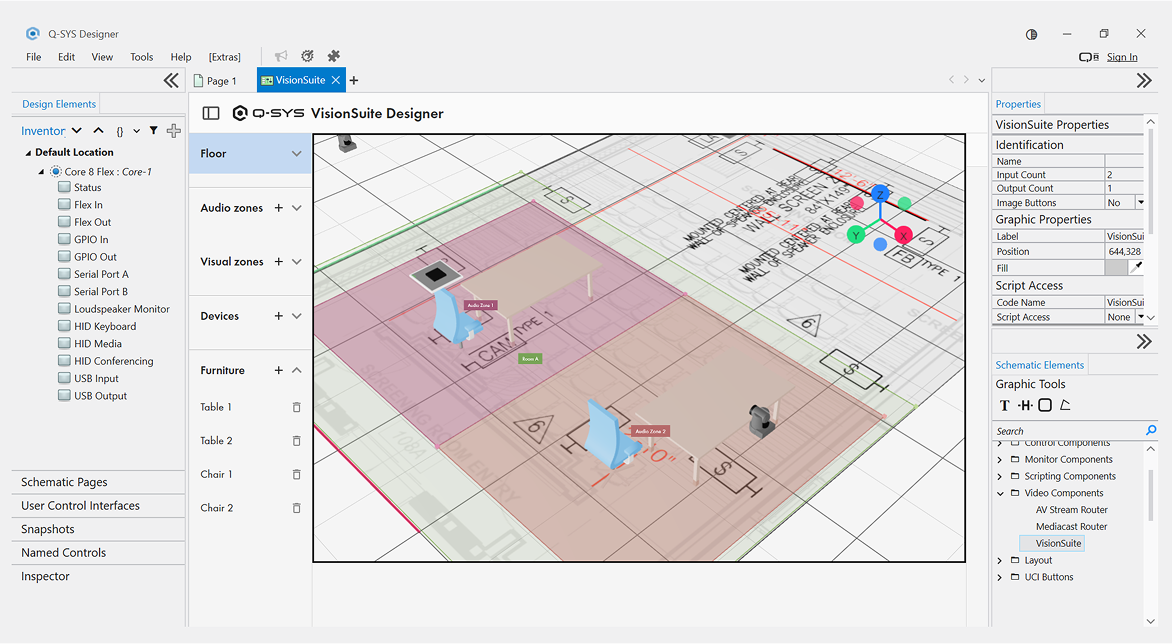

VisionSuite Designer
Q-SYS Designer内のこの使いやすいネイティブツールを使用して、設計、構成、キャリブレーション、試運転を行います。

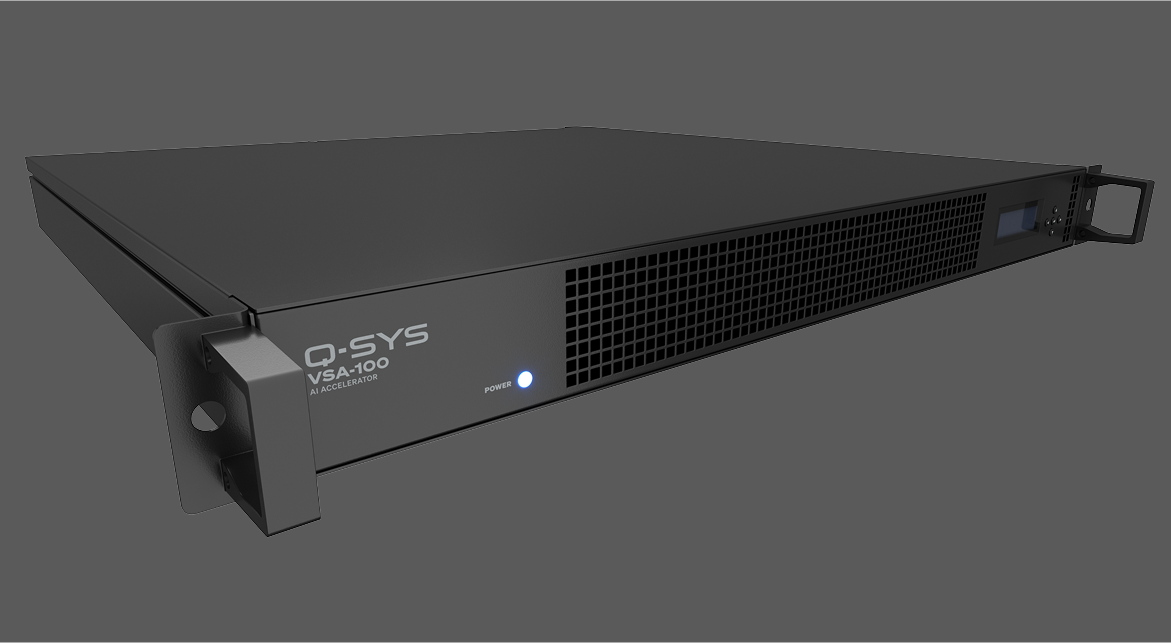

ネイティブ Q-SYS AI アクセラレーション
The Q-SYS VSA-100 VIsionSuite AI Accelerator delivers the Speaker Spotlight and Presenter Spotlight experience. Pair with Q-SYS cameras, audio accessories, and Q-SYS processing (requires the Q-SYS Core 24f processor or greater).
サポートされているアプリケーションスペース

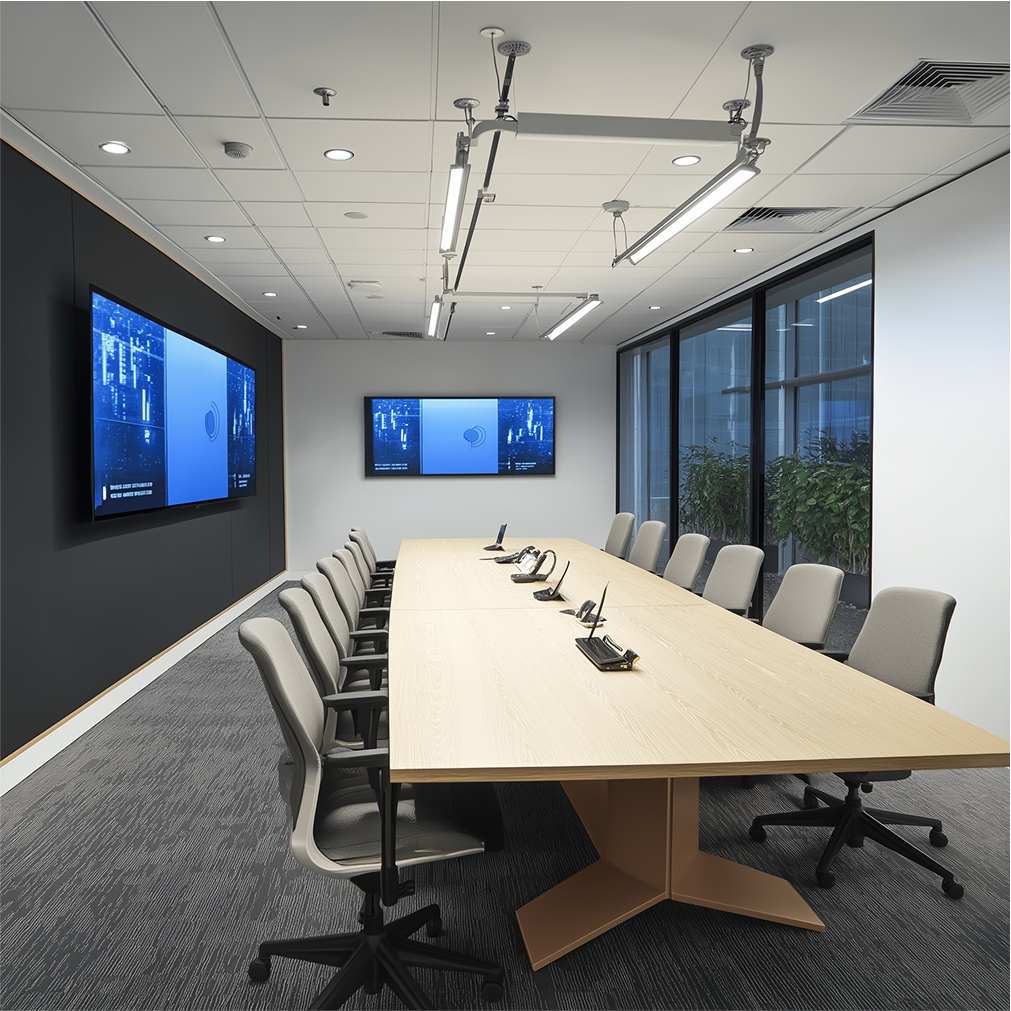

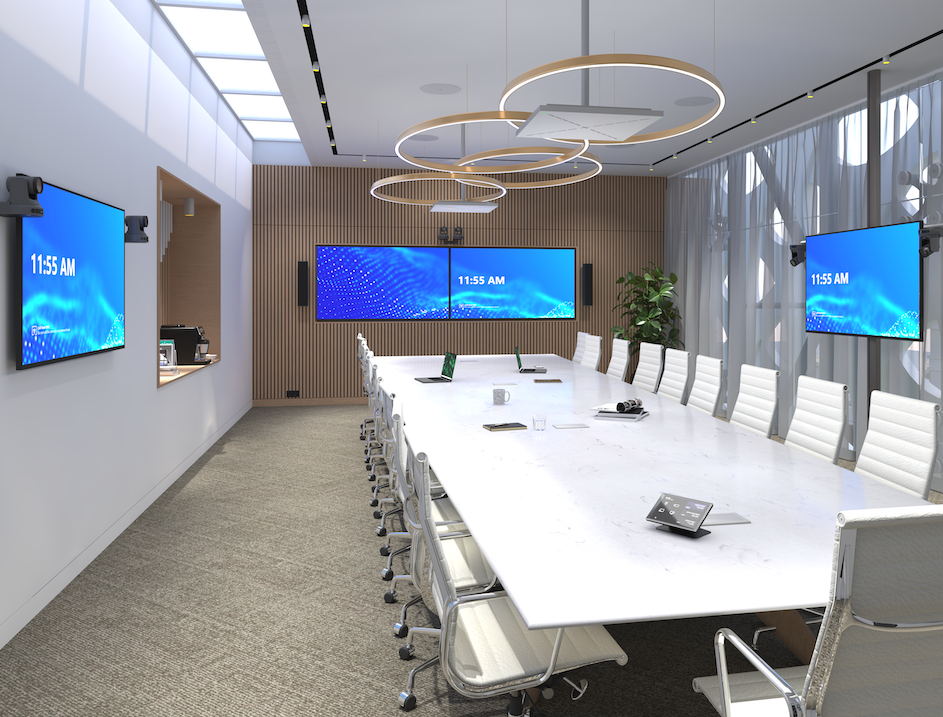

会議室
室内とリモートの参加者にとって会議の公平性を生み出します。

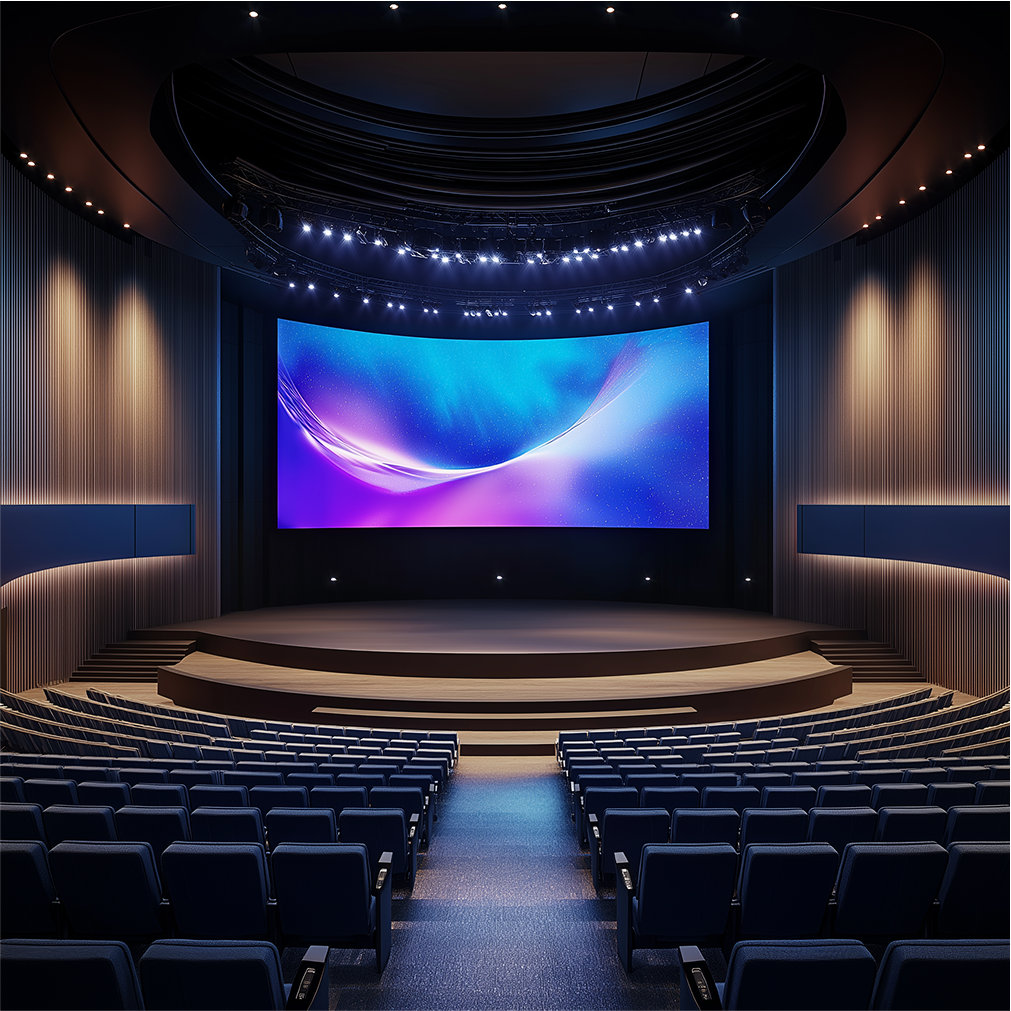

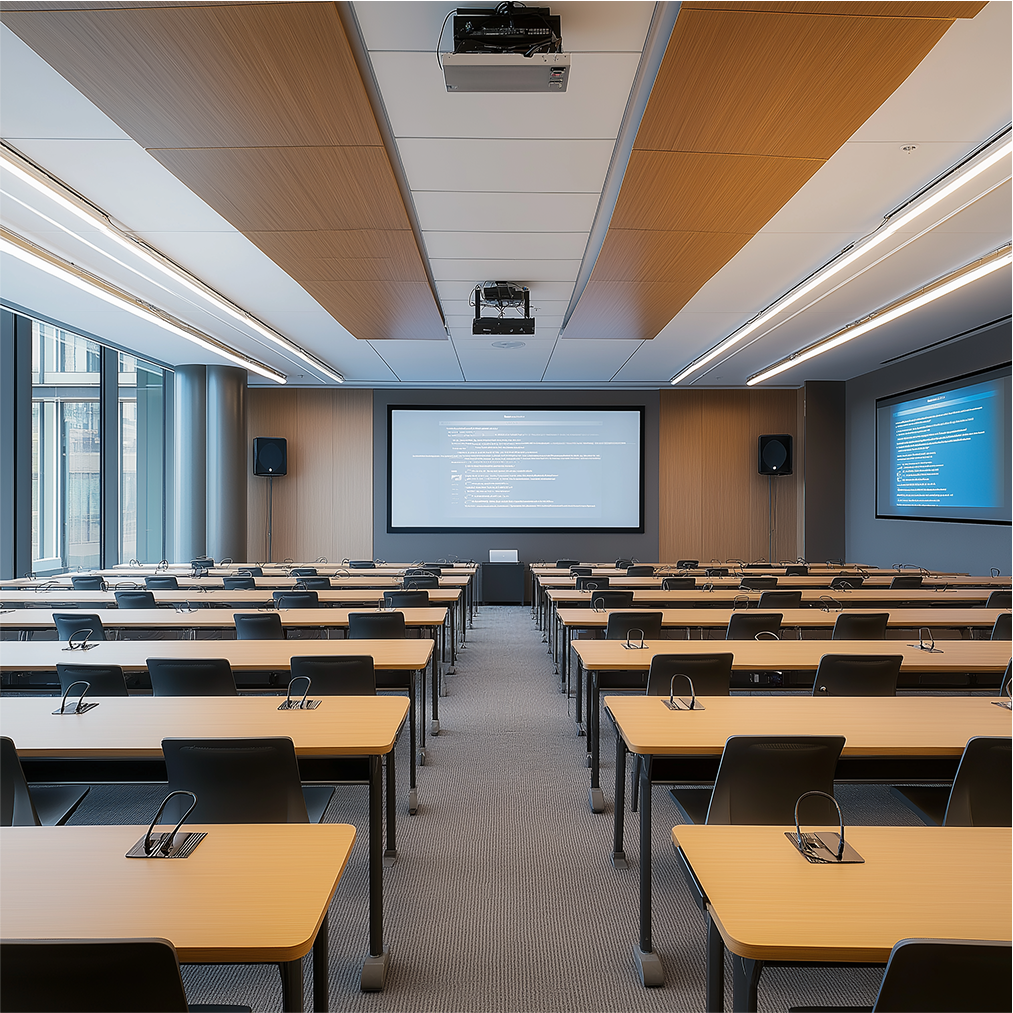

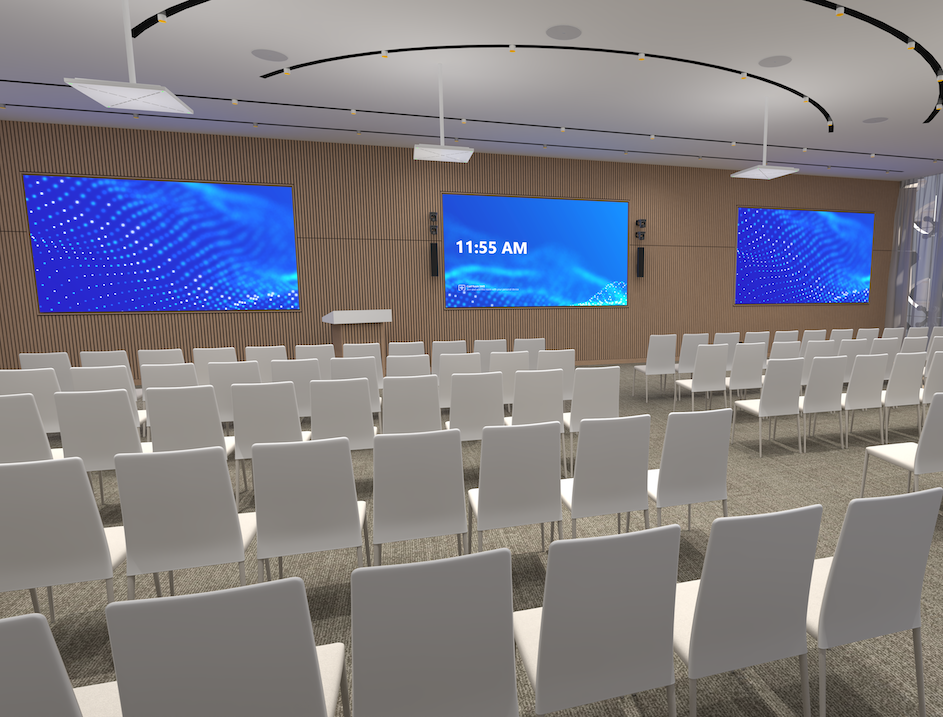

全員参加のスペース
放送およびパフォーマンス機能で高級感を演出します。

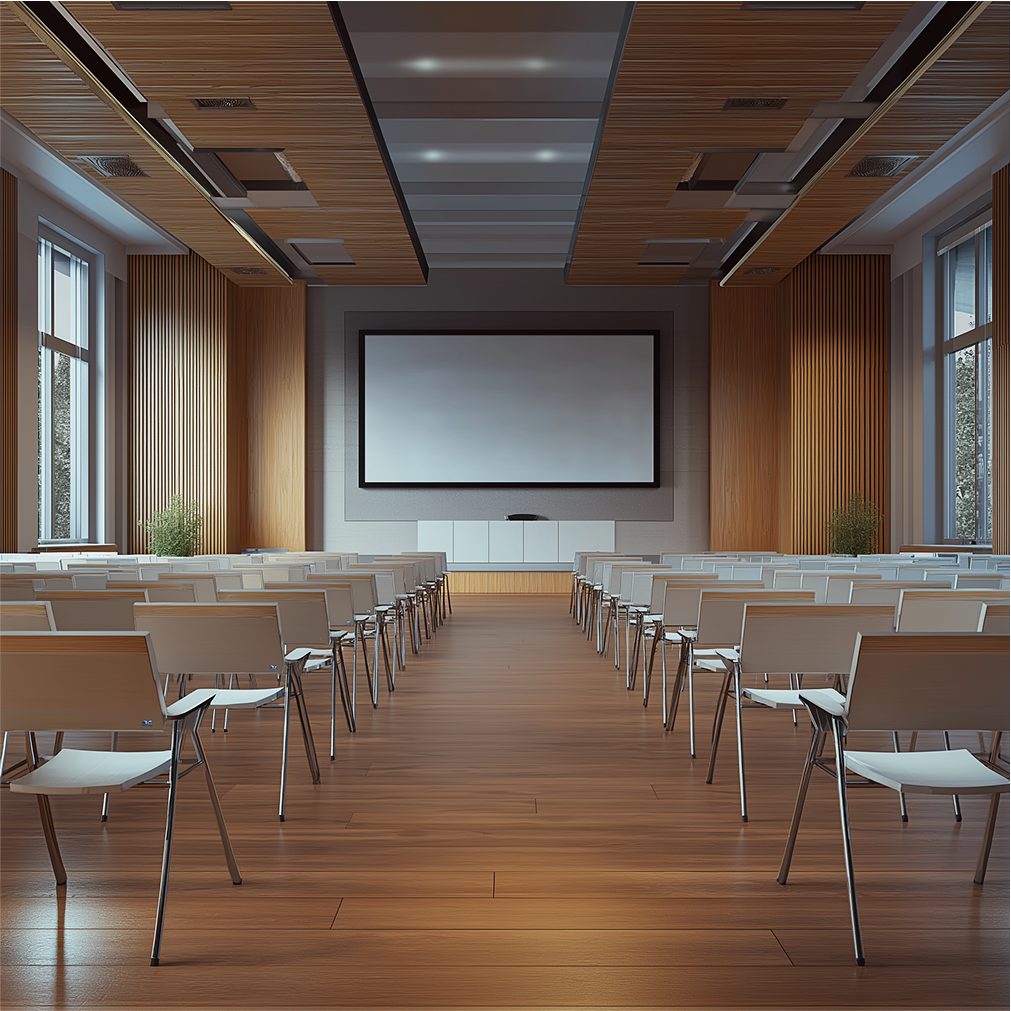

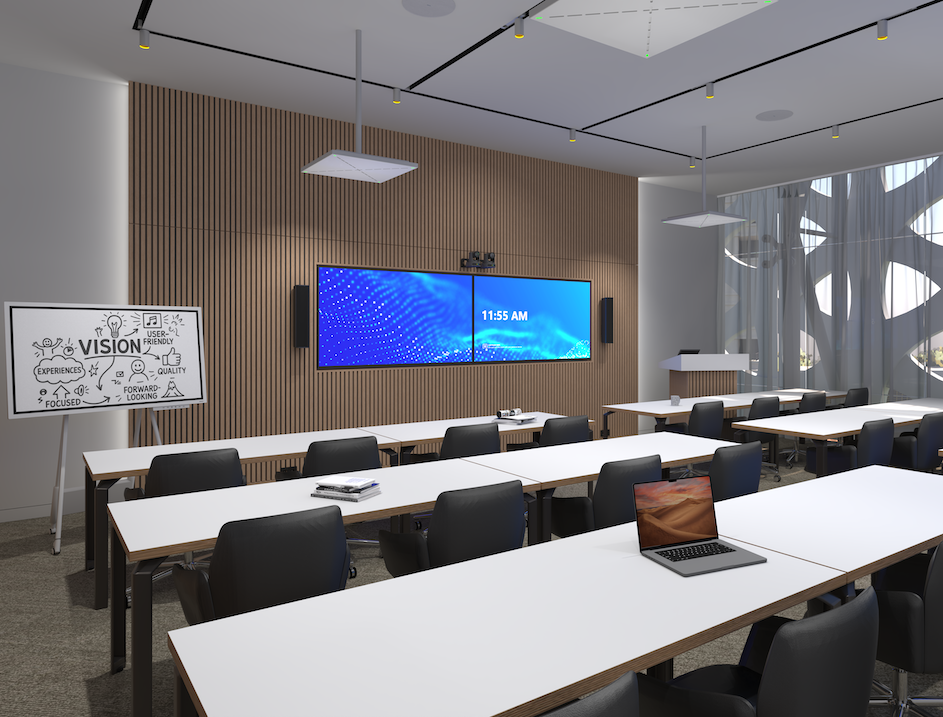

教室
講義、ホワイトボード、学生の参加のバランスをとります。
VisionSuite Quick Facts
Required Q-SYS Core
Supported by Q-SYS network cameras
- Presenter Spotlight / Speaker: NC-12x80, NC-20x60
- Conductor Camera: NC-12x80, NC-20x60, NC-90-G2
Number of cameras supported
14 Speaker Spotlight, 1 Presenter Spotlight, and 1 audience-facing Conductor camera
Number of ceiling microphones supported
Up to 8 (Shure MXA920 / Shure MXA925 / Sennheiser TCC2) per room. For the best Speaker Spotlight results, we recommend the Shure MXA920 / MXA925*.
*Microphone recommendations only apply to native VisionSuite applications. For Automatic Camera Preset Recall (ACPR) applications, see the microphone compatibility list at Q-SYS Help: ACPR.
Maximum presenter tracking distance
30 m / 98 ft (NC-20x60 at Half Body shot)
Recommended active speaker distance from mic
3 m / 10 ft
Number of VisionSuite rooms supported
1 VisionSuite room per Q-SYS Core / Q-SYS Design.
Vision-assisted framing support
Supports up to 25 audience members. For greater than 25 people, framing will be based on audio location data.
Talker Validation
System-level check that uses room-wide camera vision to confirm a detected sound is coming from an actual person to prevent unwanted shots.
Not currently supported:
- Redundant Q-SYS Cores
- 分割可能な部屋
Access everything you need for Q‑SYS VisionSuite*.
*If you are looking to update your VSA-100 to enable Native VisionSuite capabilities, the latest VSA-100 firmware patch will require a recommissioning of your VisionSuite system. Please reach out to your local Q-SYS Sales representative to discuss your installation and obtain the firmware.
