Simplicity and scale
現在のスライド： 1 ／ 1
A Windows-based solution that quickly scales and deploys across your collaboration spaces.

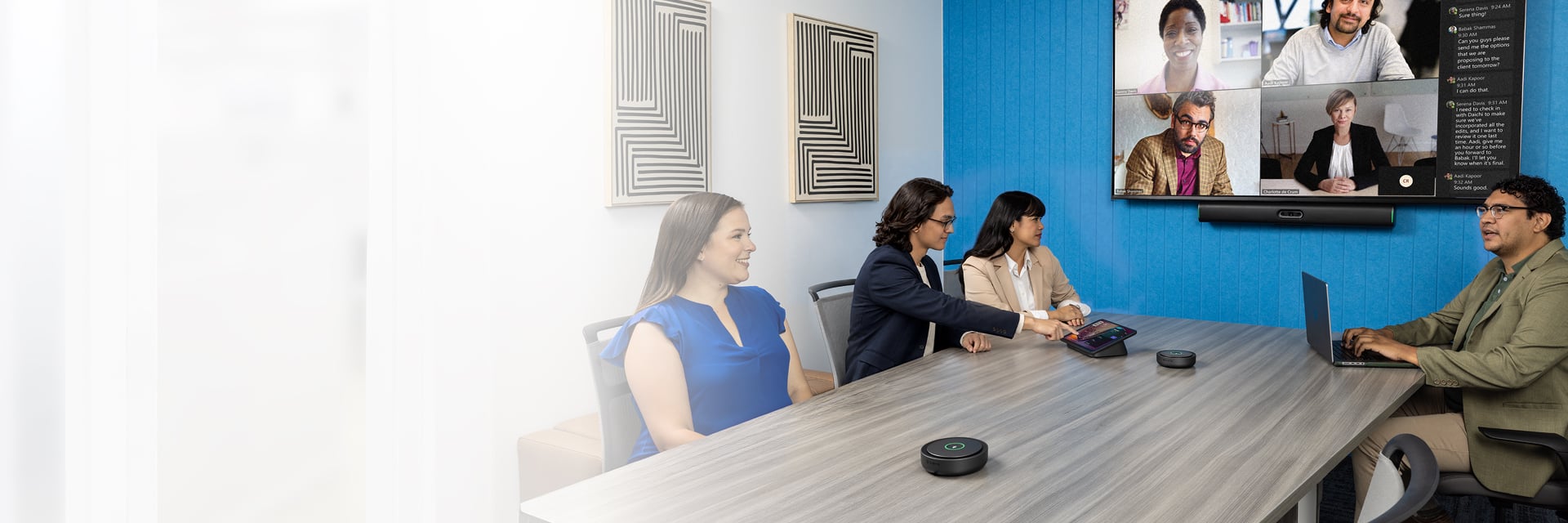

The Q-SYS RoomSuite Collaboration Bar and expansion devices provide a scalable AV solution for standard small-to-large meeting spaces. This Windows-based solution features built-in audio, video, and supports Microsoft Teams Rooms and bring-your-own-meeting conferencing. Includes a touch panel for control and allows for optional table microphones for extended audio coverage.

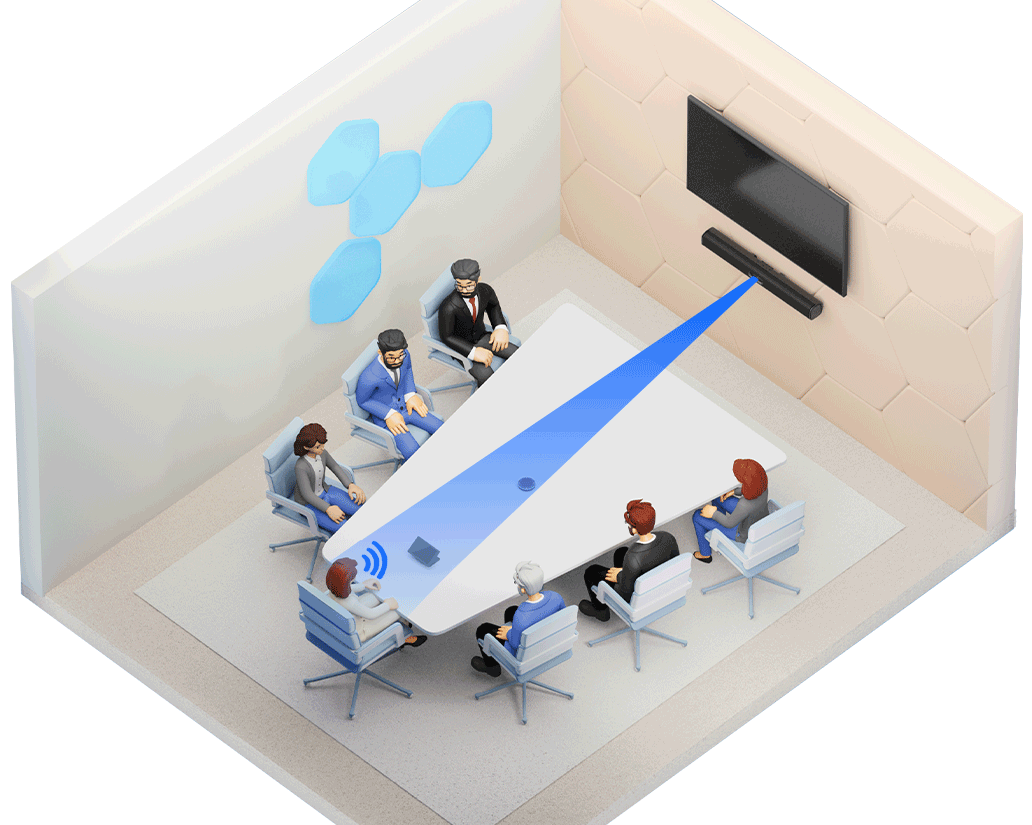

シンプルなハードウェア

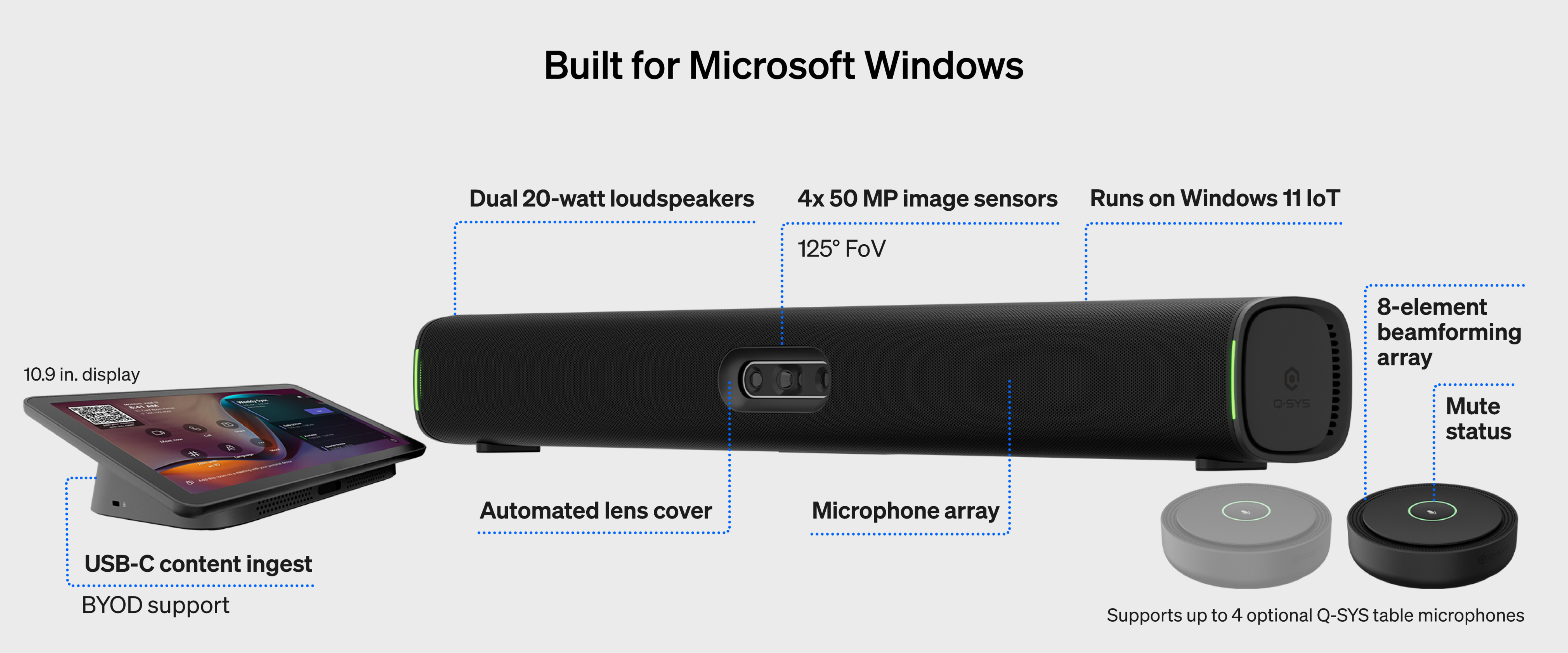

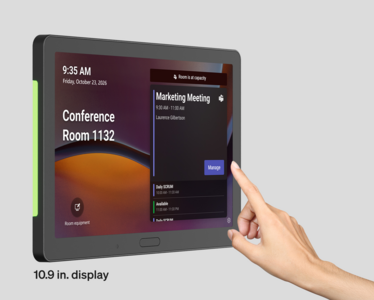

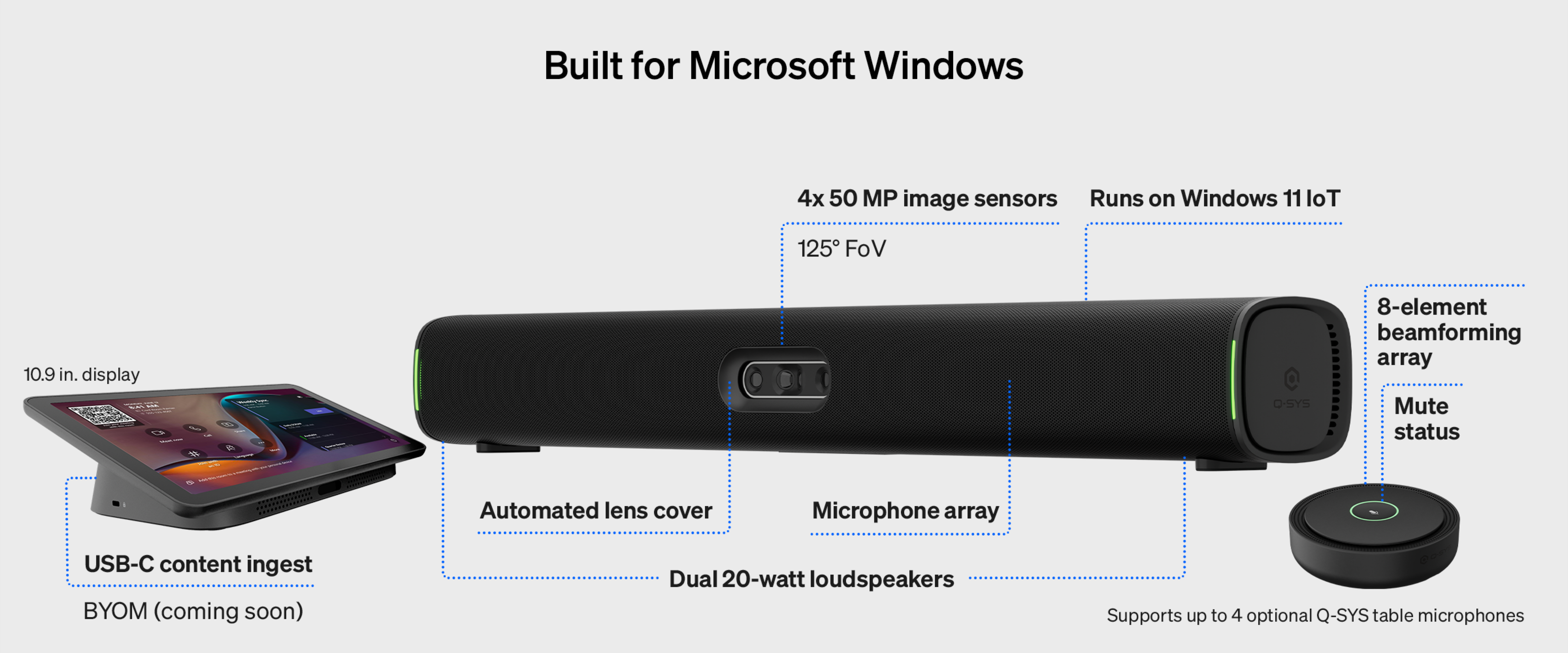

The Q-SYS RoomSuite Collaboration Bar is an integrated Windows-based device with a built-in compute. It features four high-resolution cameras, a 16-element microphone array and integrated loudspeakers. The included 10.9-inch touchscreen controller simplifies meeting management and AV bridging, while up to four optional table microphones provide flexible audio coverage with mute sync.
Simplified Configuration

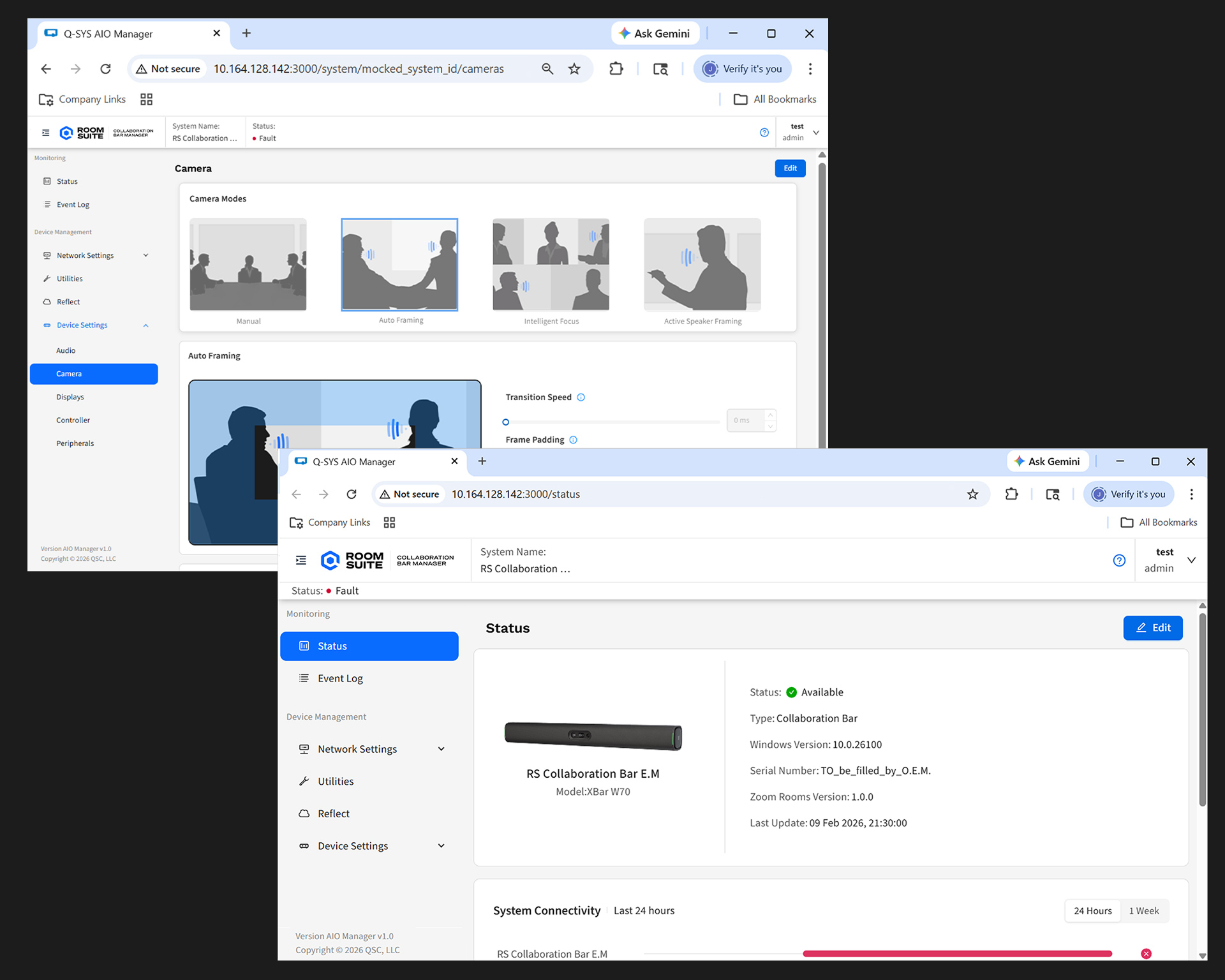

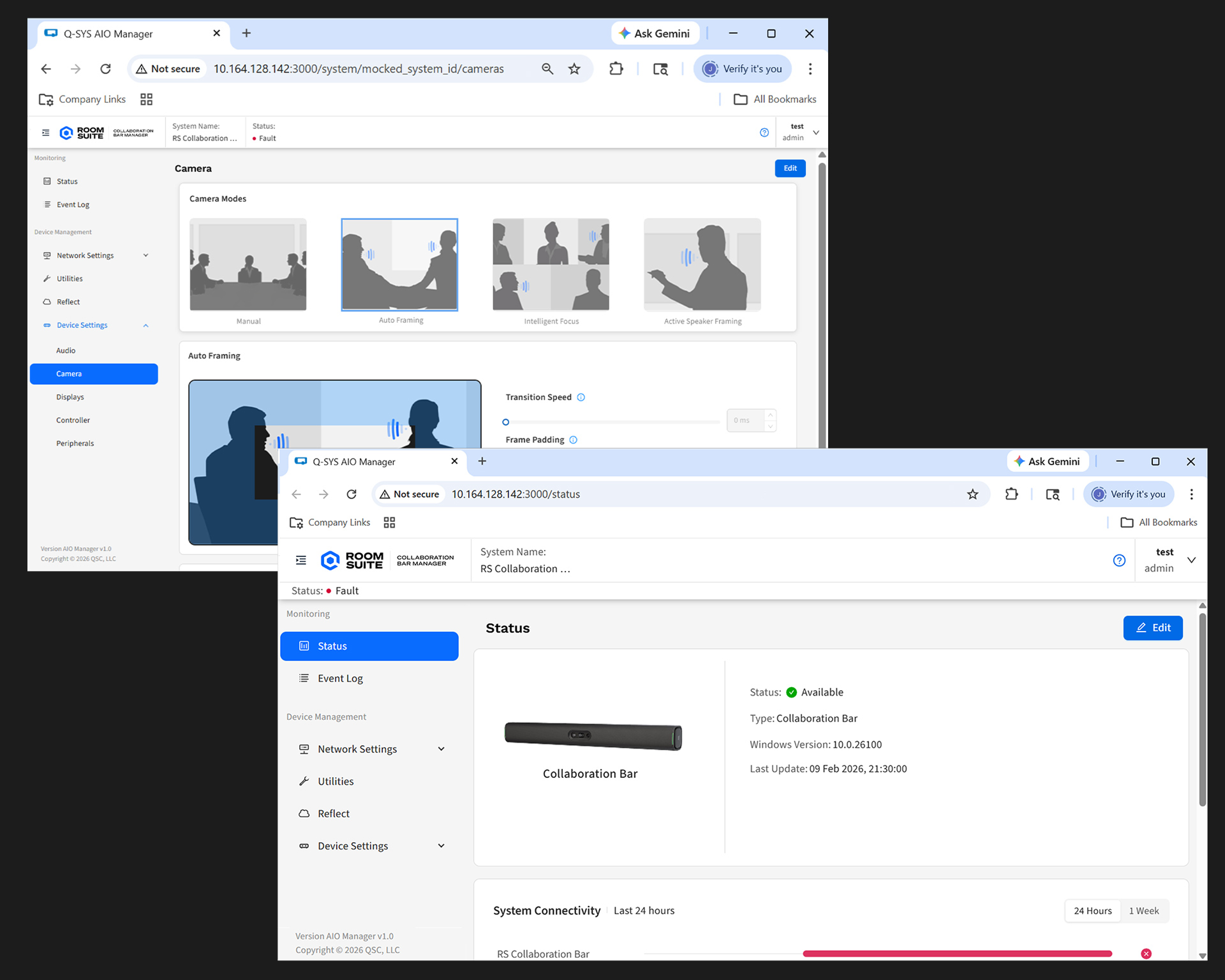

The Q-SYS RoomSuite Collaboration Bar was designed to be up and running in minutes (without Q-SYS Designer Software). Devices are plug-and-play, providing integrated meeting and device control plus room-ready audio that greatly reduces setup time. The web-based configuration tool lets users make additional changes to ensure the best performance in any space.
Simplified Registration to Q-SYS Reflect

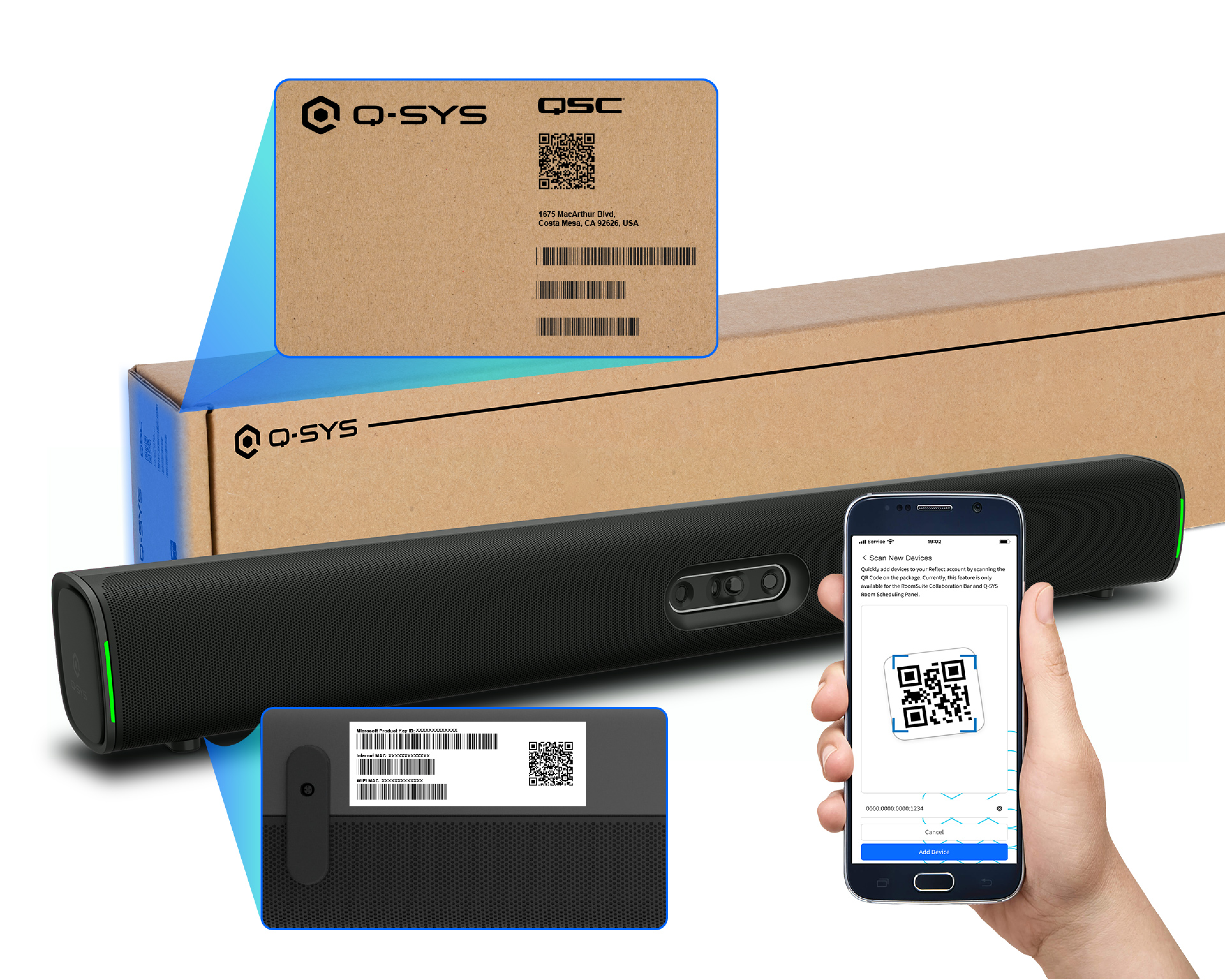

A few simple steps connects your Q-SYS RoomSuite Collaboration Bar to systemwide remote monitoring and management via Q-SYS Reflect. Just scan the QR code located on the exterior packaging or bar to access a web-based interface for easy configuration.
Simplified System-wide Management

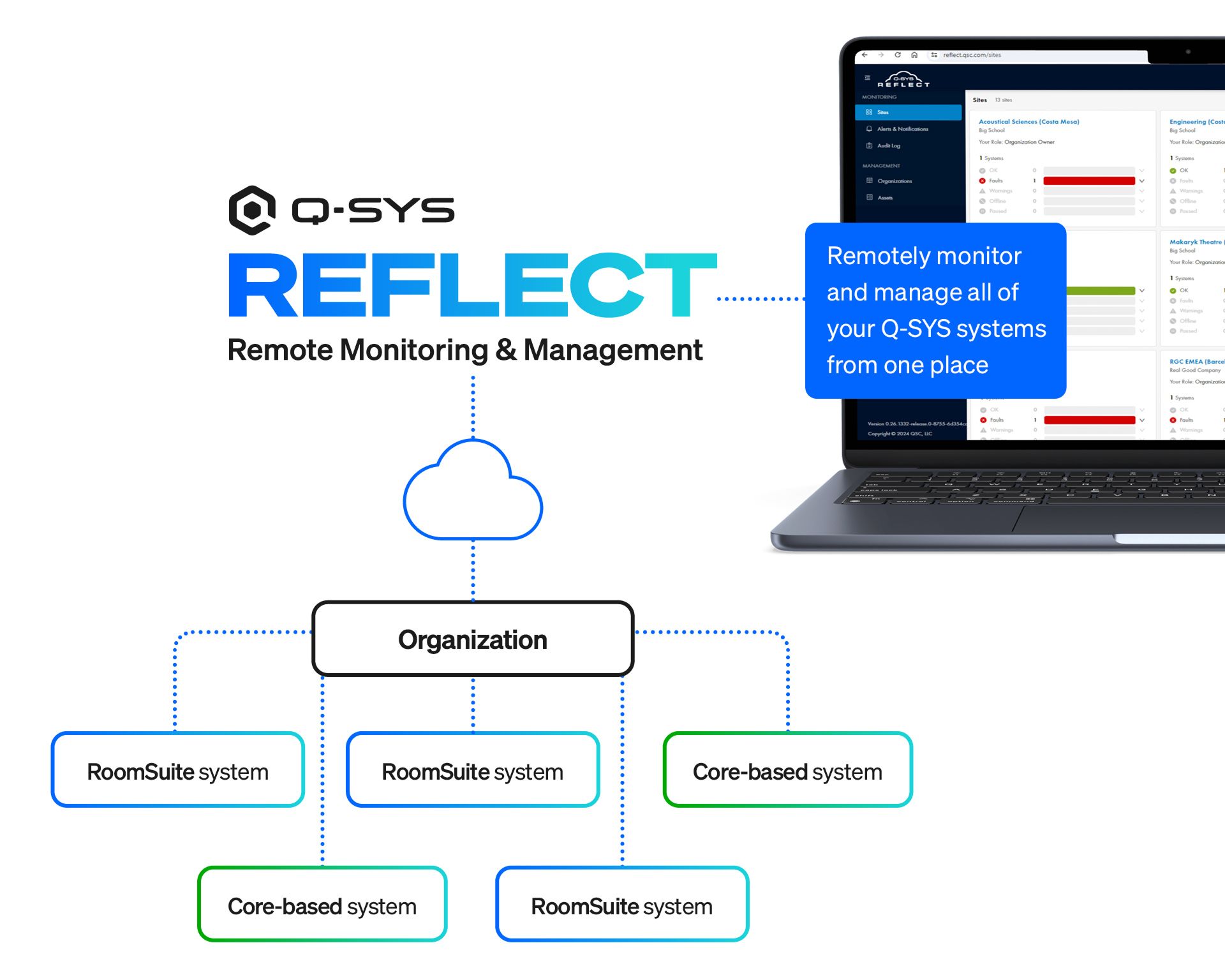

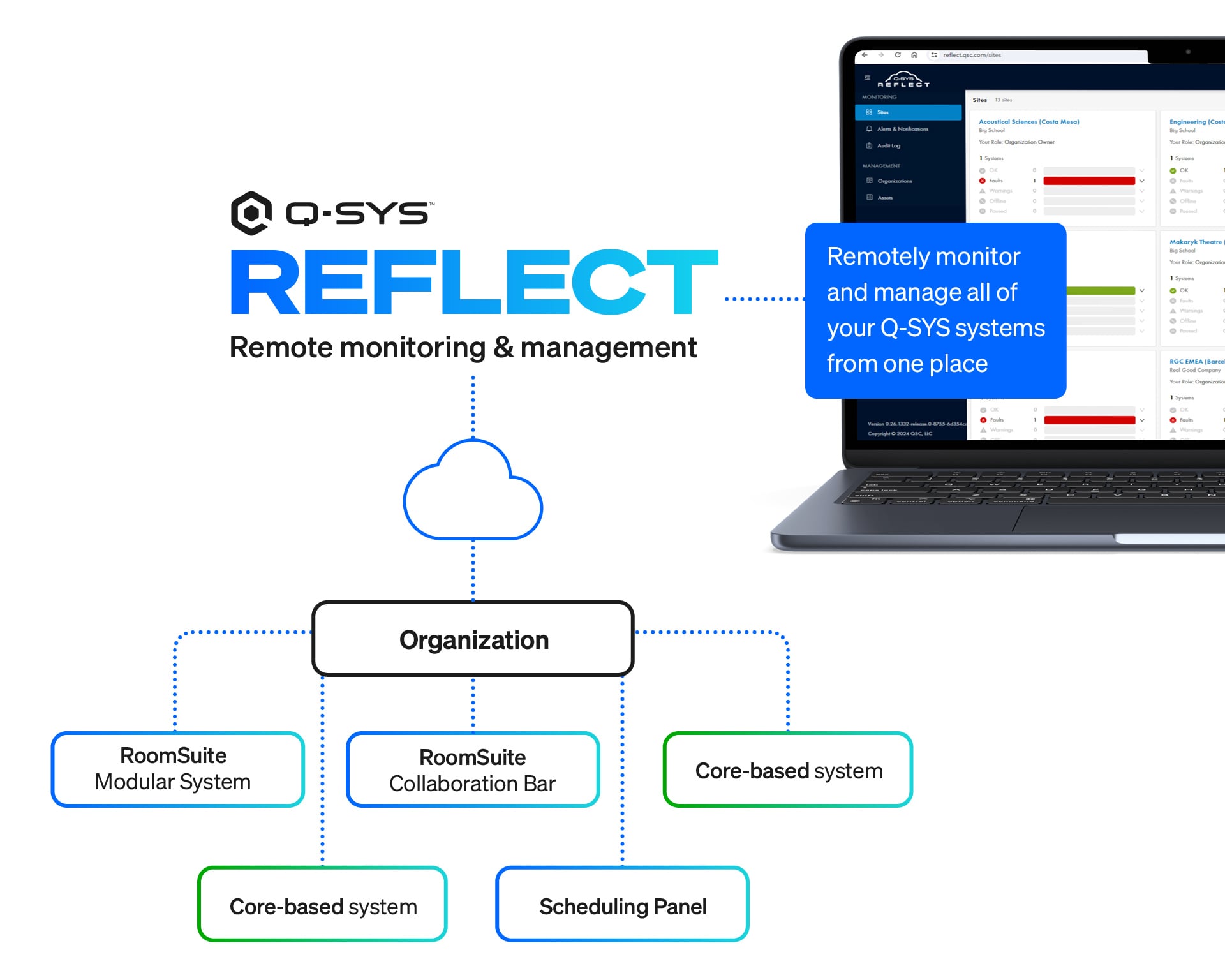

The Q-SYS RoomSuite Collaboration Bar connects to Q-SYS Reflect, a cloud-based monitoring and management tool that ties together every Q-SYS system across your high-performance workplace, and communal areas, providing system administrators with real-time actions and insights. Q-SYS Reflect Plus enables quicker scalability using presets, an easy way to save and deploy configurations of the Q-SYS RoomSuite Collaboration Bar at scale.
AI-Driven Features

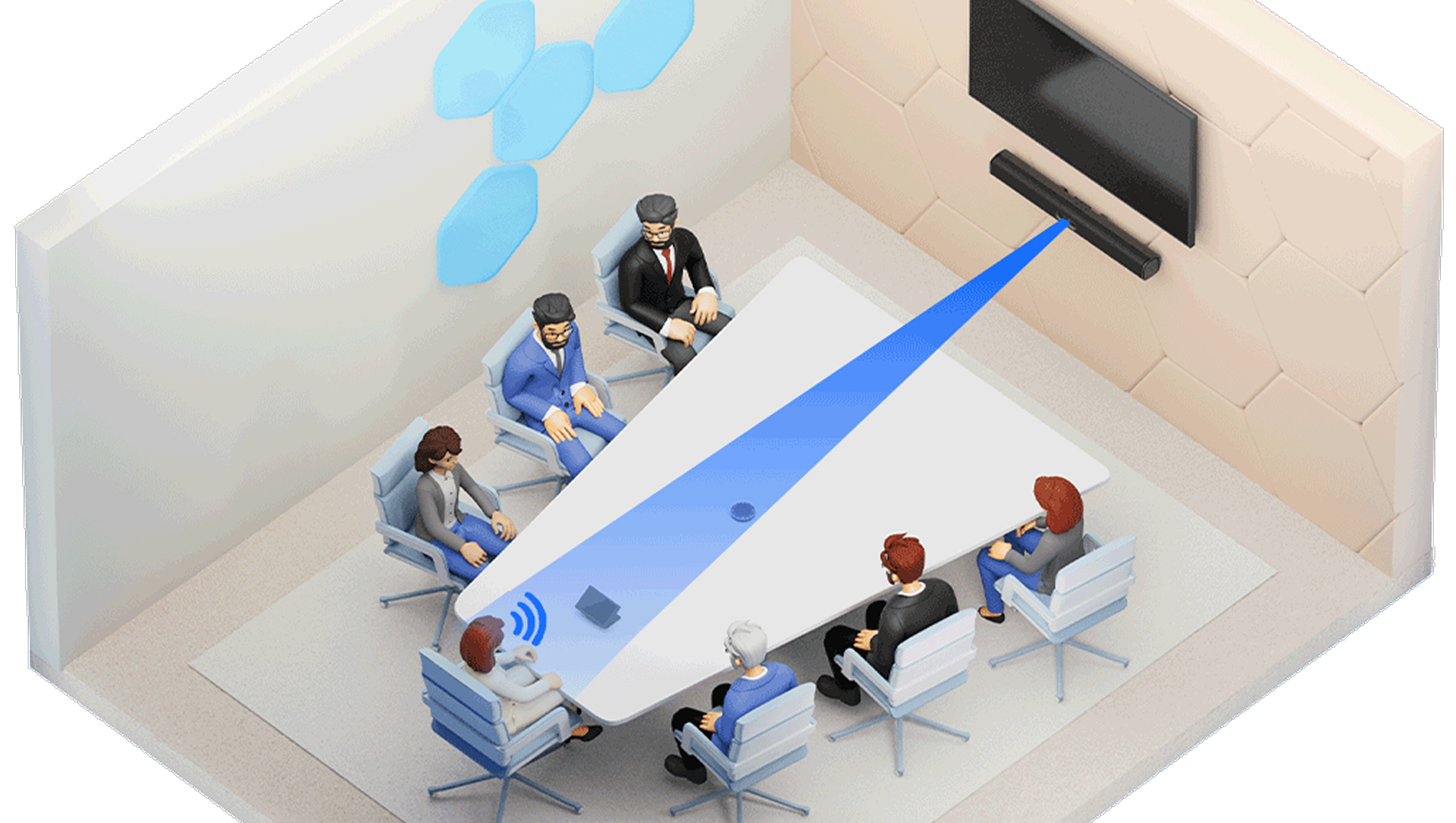

アクティブスピーカーフレーミング
Camera positioning is dynamic and triggered by audio positioning data

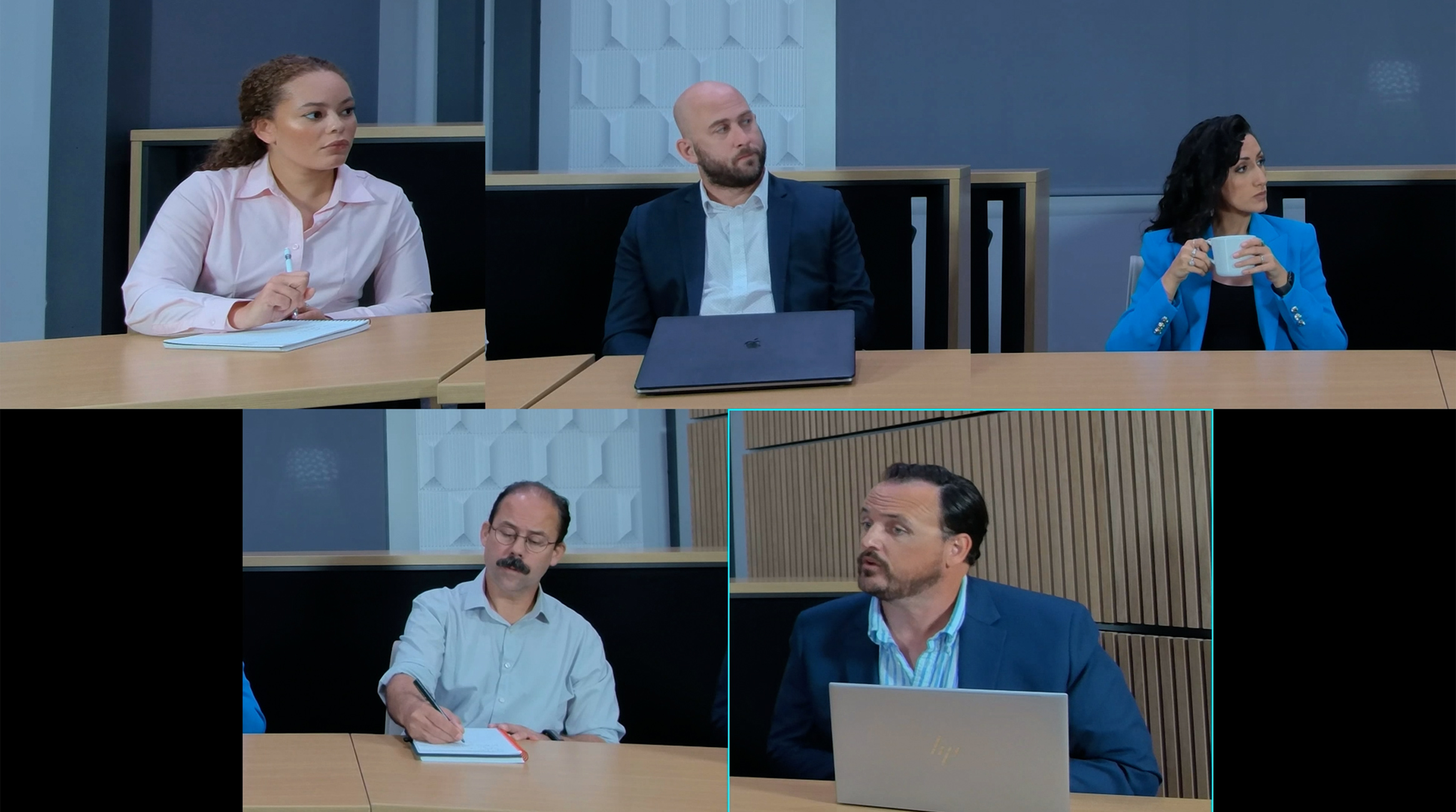

タイルビュー
Frames up to eight participants

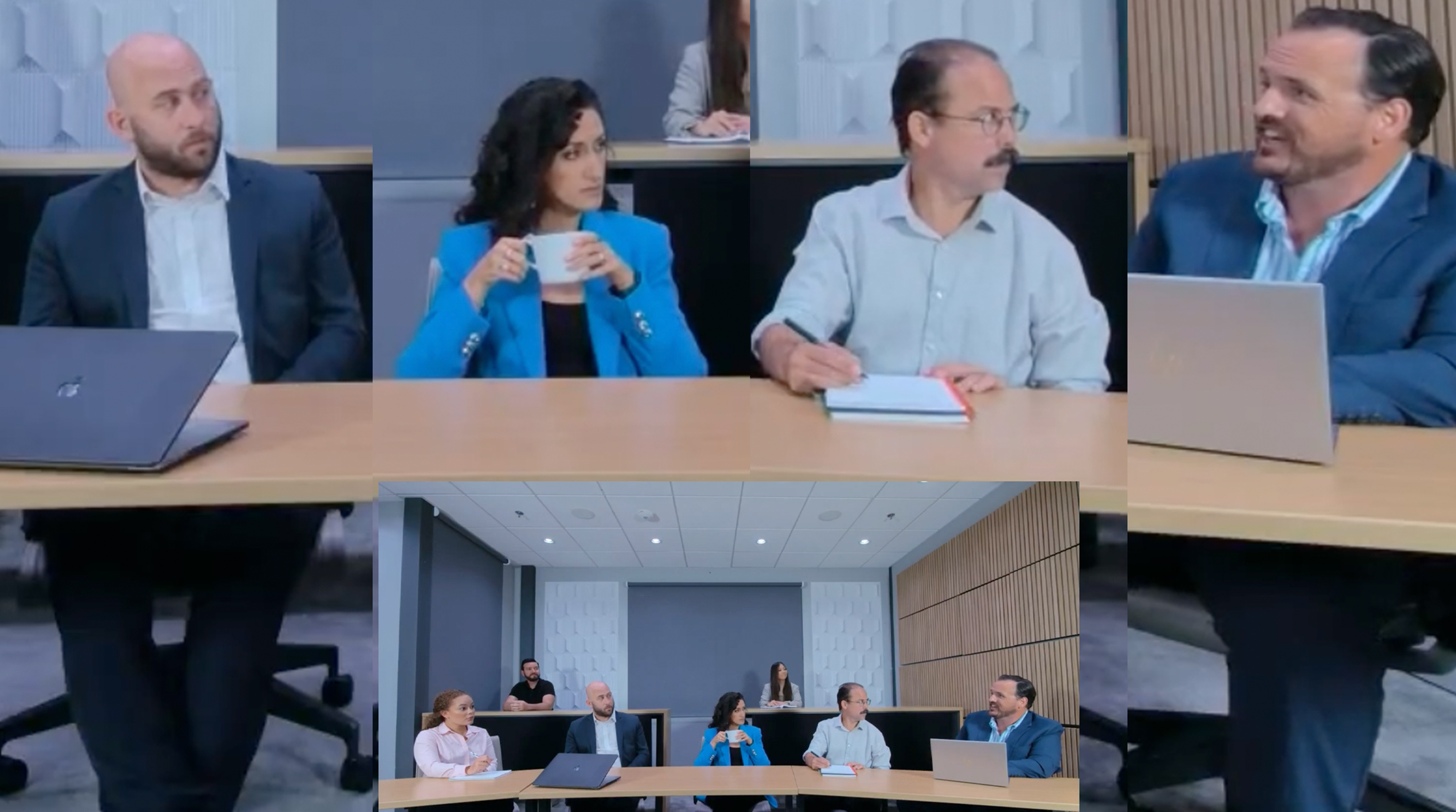

Active Speaker Tiling
Tiles last four active speakers with optional room view

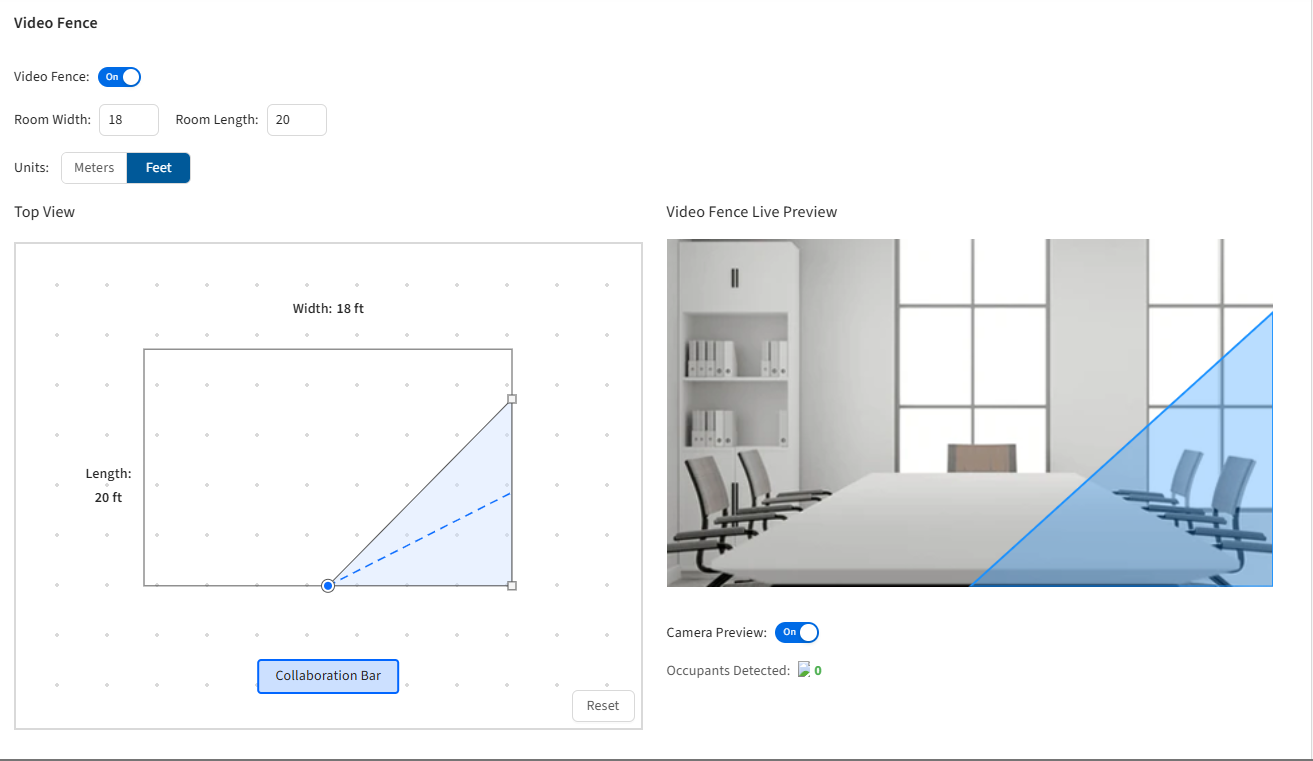

Video Fence
Define camera field of view and set exclusion zones
システムコンポーネント
リソース
| タイトル | |
|

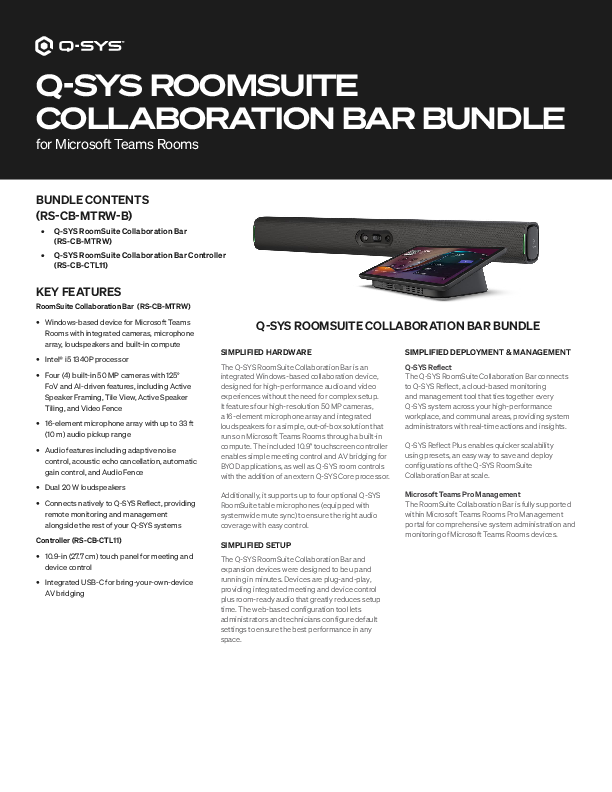

Q-SYS RoomSuite Collaboration Bar Bundle specifications sheet
Specifications sheet for the Q-SYS RoomSuite Collaboration Bar Bundle for Microsoft Teams Rooms
|
|

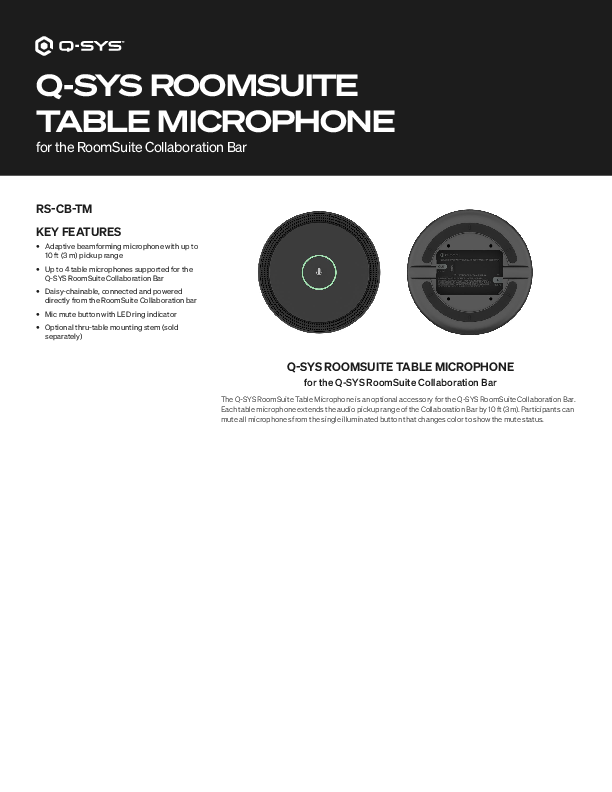

Q-SYS RoomSuite Table Microphone for the RoomSuite Collaboration Bar specifications sheet
Specifications sheet for the Q-SYS RoomSuite Table Microphone for the RoomSuite Collaboration Bar
|
| タイトル |
| Model | Q-SYS RoomSuite Collaboration Bar | |||
| システムの詳細 | ||||
| Product type | Collaboration bar with integrated cameras, loudspeakers and microphone array | |||
| Operating system | Windows 11 IoT Enterprise | |||
| UC Application | Microsoft Teams Rooms | |||
| Compute & performance | ||||
| プロセッサー | Intel® i5 1340P | |||
| Memory | 16 GB RAM | |||
| Storage | 256 GB | |||
| Graphics | Intel® UHD Graphics (12th Gen) | |||
| Camera | ||||
| Camera quantity | 2x wide-angle, 2x telephoto | |||
| 解像度 | 4x 50 MP image sensors | |||
| Zoom | 8x hybrid zoom | |||
| プライバシー | Automatic lens shutter | |||
| Field of view | ||||
| Camera | 横型 | Vertical | Diagonal | |
| Wide camera | 125° | 50° | 130° | |
| Telephoto camera | 42° | 32° | 52° | |
| オーディオ | ||||
| 構成 | Stereo (2.0) | |||
| Power Output | 20 Watt + 20 Watt | |||
| 周波数範囲 | 80 Hz – 20 kHz | |||
| マイク | ||||
| Microphone array | 16-element microphone array | |||
| Pickup range | Up to 33 ft (10 m) | |||
| 周波数範囲 | 20 Hz – 16 kHz | |||
| Content sharing | ||||
| Microsoft Teams (In-meeting) | 1080p @ 30 fps | |||
| USB-C local sharing | 1080p @ 30 fps | |||
| HDMI local sharing | 1080p @ 30 fps | |||
| 物理仕様 | ||||
| Dimensions (L x W x H) | 33.1 x 4.6 x 4.1 in (840.6 x 117.6 x 104 mm) | |||
| 重量 | 11 lbs (5.0 kg) | |||
| 環境と安全 | ||||
| 保存温度範囲 | -4° to 140°F (-20 to 60°C) | |||
| 保存湿度範囲 | 10% to 90% | |||
| 動作温度範囲 | 32° to 104°F (0° to 40°C) | |||
| 動作湿度範囲 | 10% to 90% | |||
| Model | Q-SYS RoomSuite Collaboration Bar UC Controller | |||
| システムの詳細 | ||||
| Screen size | 10.95 in (278 mm) | |||
| 解像度 | 1920 x 1080 | |||
| Refresh rate | 60 Hz | |||
| 明るさ | 250 nits (minimum) – 300 nits (maximum) | |||
| Backlight | ELED | |||
| Touch & sensors | ||||
| Touch type | Capacitive | |||
| Surface | Anti-glare, anti-fingerprint | |||
| Motion sensor | PIR (auto wake-up) | |||
| マウンティング | ||||
| Wall mount | Included | |||
| 180° swivel mount | Optional | |||
| Content sharing | ||||
| USB-C local sharing | 1080p @ 30 fps | |||
| 物理仕様 | ||||
| Dimensions (L x W x H) | 10.6 x 6.7 x 3.4 in (269.2 x 170.2 x 86.4 mm) | |||
| 重量 | 2.6 lbs (1.2 kg) | |||
| 環境と安全 | ||||
| 保存温度範囲 | -4° to 140°F (-20 to 60°C) | |||
| 保存湿度範囲 | 10% to 90% | |||
| 動作温度範囲 | 32° to 104°F (0° to 40°C) | |||
| 動作湿度範囲 | 10% to 90% | |||
| Model | Q-SYS Table Microphone for the RoomSuite Collaboration Bar (RS-CB-TM) | ||
| オーディオ | |||
| マイクの種類 | Adaptive beamforming | ||
| ピックアップ範囲 | Up to 3m radius | ||
| マイクロホンエレメント | 8x MEMS | ||
| 接続性 | Ethernet, compatible only with Q-SYS RoomSuite Collaboration Bar | ||
| 周波数特性 | 100 Hz - 10 kHz, +/-3 dB | ||
| サンプリングレート | 48KHz | ||
| ビット深度 | 16bit | ||
| 感度 | -37dBFS | ||
| 最大SPL（1kHz@THD 1%） | 128dB | ||
| ダイナミックレンジ | 99dB | ||
| S／N比 | 65dB(A) | ||
| セルフノイズ | 29dB(A) | ||
| 電源 | |||
| 電源要件 | PoE Type 1 Class 2 (daisy-chainable up to 4 total table microphones) | ||
| 消費電力 | <3 W | ||
| コネクターの種類 | RJ-45 | ||
| 一般仕様 | |||
| 寸法図 | 4.75 x 1.375 in (121 x 35 mm) | ||
| 重量 | 0.68 kg（1.5 ポンド） | ||
| 付属品 | CAT6 cable (10 ft / 3 m) | ||
| オプションのアクセサリー | Thru-table mounting stem | ||
