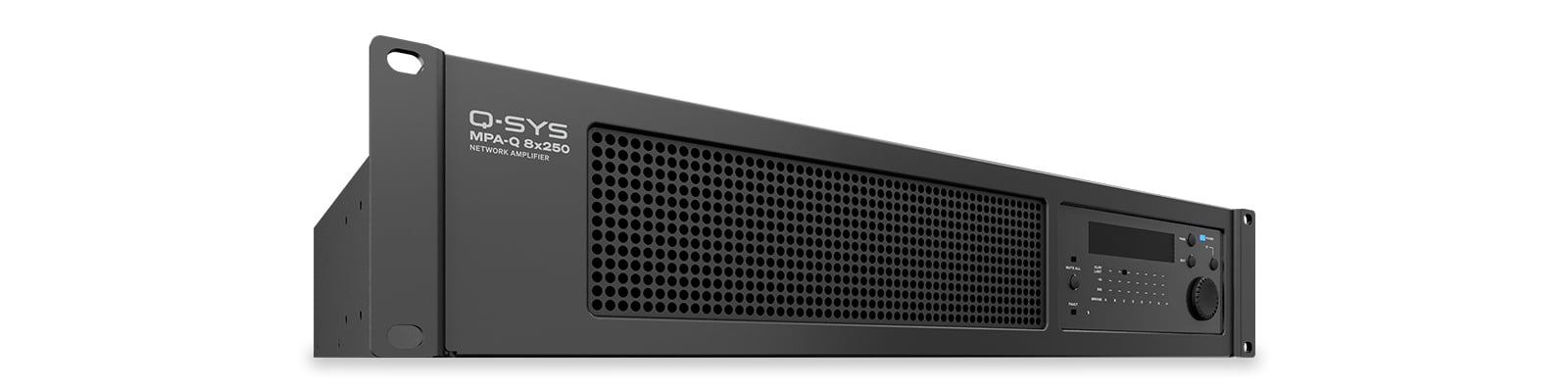

MPA-Q 8x250

Eight-channel Network Amplifier

お問い合わせ

The MPA-Q 8x250 is part of the mid-power tier in the Q-SYS network amplifier portfolio, extending native Q-SYS integration into even more performance and distributed audio applications across hospitality, entertainment, retail and government environments.

特徴と利点

  • Eight (8) output channels at 250 W per channel
  • Lo-Z, Hi-Z, 70 V and 100 V direct drive available on all channels (no bridging or manual switches required)
  • Eight (8) analog, line-level audio inputs, fully routable into Q-SYS or direct out
  • 2 ギガビット イーサネット ポートにより、冗長ネットワーク オーディオを実現
  • Standalone mode offers ability to switch to available analog inputs if network connectivity drops
  • Quick audio restore after a power outage if PoE connection is available
  • Four (4) GPI inputs and two (2) NO/NC output relays
  • Full-rack width, 2RU form factor and included hardware for rack- or surface-mounting
  • Analog Mode bypasses networked audio and creates a fully analog amplifier; front panel display allows basic channel configuration in this mode
  • Rightsized for medium-to-large spaces: MPA-Q Series introduces a new mid-power tier to the Q-SYS network amplifier portfolio and is ideal for spaces where high-output amplifiers exceed operational needs, like hospitality and retail facilities, entertainment spaces and larger corporate and government environments.
  • Adapt to keep audio flowing: Ensure your audio system stays running with minimal interruptions. If network connectivity drops, MPA-Q Series amplifiers offer the ability to automatically switch the source to available analog inputs to maintain sound continuity. In the event of a power outage, network audio can be restored within seconds if a PoE connection is available.
  • Venue-wide audio with Q-SYS: MPA-Q Series network amplifiers extend a seamless Q-SYS experience to even more spaces, delivering native audio routing and control in both distributed and performance audio applications throughout your venue.
  • Integrated audio, video and control: MPA-Q Series network amplifiers are driven by the Q-SYS Full Stack AV Platform, which unifies data, devices and a cloud-first open architecture to deliver a fully integrated audio, video and control solution that offers simpler integration and software-based scalability.
仕様 MPA-Q 8x250
Amplifier Output
Freq response @ 20Hz-20kHz, 8Ω +0.2 dB / -0.7 dB
Output THD+N @1kHz 0.01%-0.03% typical; 1% max
SNR @ 20Hz-20kHz, 8Ω, A-weighted >112 dB
Gain @+4dBu input  31 dB
減衰係数 >160
Analog Inputs (line-level only)
Input dynamic range (unweighted) >108 dB
Input impedence (balanced & unbalanced) @ 1kHz >11k balanced and >5.5k unbalanced
サンプルレート 48 kHz
DSP
DSP Processing Gain, Polarity, IIR Filters (HPF, Parametric, Shelf, Array Correction), FIR Filters (1024 taps per channel), Delay (up to 2020 milliseconds per channel), Limiters (narrow-band, RMS, and peak limiters)
Output Power Maximum1 Continuous2

All channels driven
A, B, C, D

 100 V 250W 150 W
70V 250W 150 W
8 Ω 250W 150 W
4Ω 250W 150 W
2 Ω 250W 150 W

Single channel driven
A or B or C or D

 100 V （未確定）
70V
8 Ω
4Ω
2 Ω

2 channels bridged
A+B or C+D

 100 V 500 W 300 W
70V 500 W 300 W
8 Ω 500 W 300 W
4Ω 500 W 300 W
2 Ω Not supported
環境
動作温度範囲 32° to 104° F (0° - 40° C)
保存温度範囲 -4° to 158° F (-20° to +70° C)
湿度範囲 5% - 85% RH
物理仕様

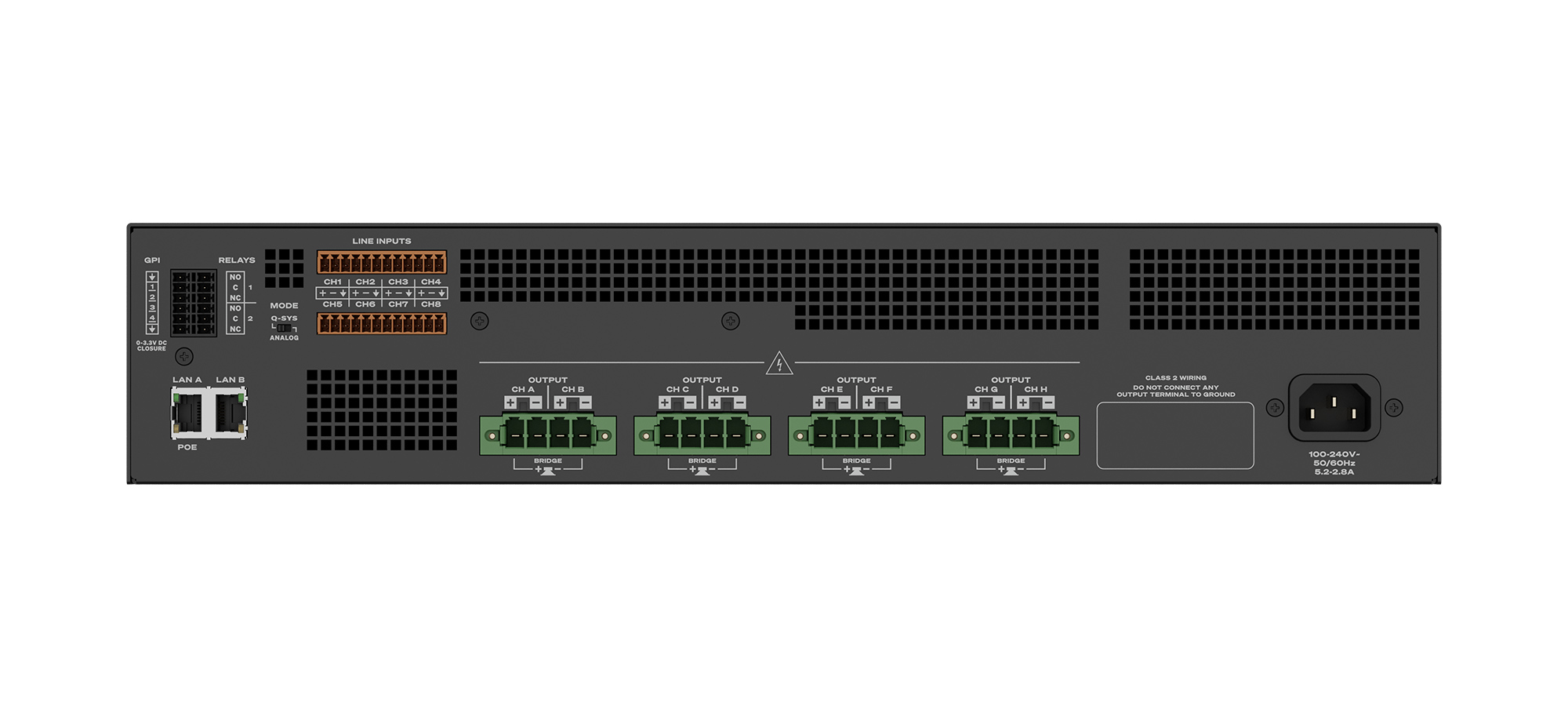

Audio I/O connections Output: 8x channels (Euro 7.62 mm)
Input: 8x channels (Euro 3.5 mm)
ネットワーキング 2x 1 Gbps Ethernet ports
 LAN A optionally accepts PoE (802.3af Type 1) for quick time-to-audio following a power interruption
GPI 0-3.3V DC Closure
取り付けオプション Front rack ears come installed for rack mount installation (rack ears can also be used for chassis-supported surface-mounting)
AC電源インプット 100-240 V, 50/60Hz, 5.2-2.8 A
製品寸法（L x W x H） 15.0 x 19.0 x 3.5 in (381 x 483 x 89 mm)
製品重量 22.9 lbs (10.4 kg)
付属品

1x AC mains power cord (country specific)
Removable rack ears for rack- or surface-mounting
4-position 7.62mm pitch Euroblock connectors (Qty 8)
3-position 3.5mm pitch Euroblock connectors (Qty 16)
12-position (2-row) 3.5mm pitch Euroblock connector (Qty 1)


*All specifications are subject to change without notice.
1. Max Power - 20 ms , 1 kHz sine wave burst; this data is most useful for asymmetrical loading of amplifier channel and maximizing power utilization of the amplifier.
2. Continuous power: 20 Hz - 20 kHz bandwidth, all channels driven with same load; this data is most useful for estimating longer-term power output across all amplifier channels.
