MPA-Q Series
Q-SYSネットワークアンプ
MPA-Q Series network amplifiers introduce a new, mid-power tier to the Q-SYS network amplifier portfolio to extend native Q-SYS integration into even more performance and distributed audio applications across hospitality, entertainment, retail and government environments.
Rightsized for medium-to-large spaces
MPA‑Q Series is ideal for medium-to-large spaces that don’t require the output level of high‑power amplifiers. Available 4-channel models provide 250 or 500 Watts per channel, and 8-channel models provide 125 or 250 Watts per channel with all models offering support for Lo-Z and Hi-Z loads.

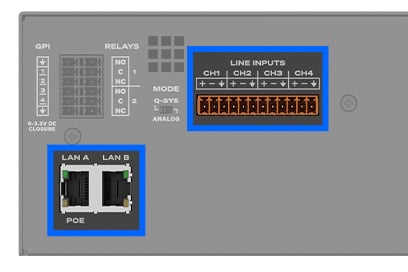

Adapt to keep audio flowing
Ensure your audio system stays running with minimal interruptions. If network connectivity drops, MPA-Q Series amplifiers offer the ability to automatically switch the source to available analog inputs to maintain sound continuity. In the event of a power outage, network audio can be restored within seconds if a PoE connection is available.

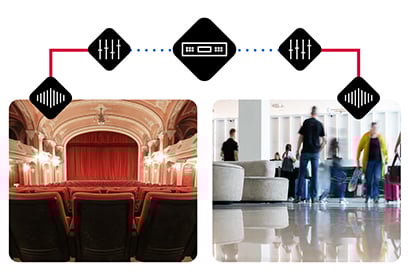

Venue-wide audio with Q-SYS
MPA-Q Series network amplifiers extend a seamless Q-SYS experience to even more spaces, delivering native audio routing and control in both distributed and performance audio applications throughout your venue.
統合されたオーディオ、ビデオ、および制御

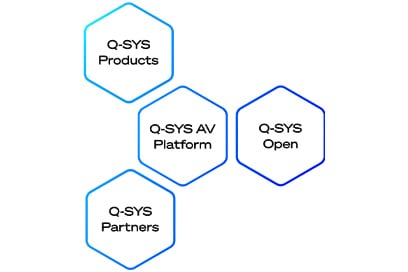

MPA-Q Series network amplifiers are driven by the Q-SYS Full Stack AV Platform, which unifies data, devices and a cloud-first open architecture to deliver a fully integrated audio, video and control solution that offers simpler integration and software-based scalability.
アプリケーション図
（画像をクリックすると拡大表示されます）
SELECT A MODEL
| MPA-Q 4x250 | MPA-Q 4x500 | MPA-Q 8x125 | MPA-Q 8x250 | |
| Max power (per channel) | 250W | 500 W | 125 W | 250W |
|---|---|---|---|---|
| Number of channels | 4 | 4 | 8 | 8 |
| Input/Output connectors | Analog, line-level audio inputs equal in quantity to speaker outputs | |||
| GPIO | 4x GPI inputs and 2x NO/NC output relays | |||
| ネットワーキング | Dual 1G LAN ports for redundant network audio | |||
| 製品寸法 （L×W×H） | 15.0 x 19.0 x 3.5 in (381 x 483 x 89 mm) | |||
| 製品重量 | 19.4 lbs (9.0 kg) | 20.7 lbs (9.4 kg) | 22.5 lbs (10.2 kg) | 22.9 lbs (10.4 kg) |
| 付属品 | 1x AC mains power cord (country specific) Removable rack ears for rack- or surface-mounting 4-position 7.62mm pitch Euroblock connectors (Qty 4 or 8) 3-position 3.5mm pitch Euroblock connectors (Qty 8 or 16) 12-position (2-row) 3.5mm pitch Euroblock connector (Qty 1) | |||
All specifications are subject to change without notice.
