Scaling Q-SYS to more spaces
現在のスライド： 1 ／ 1
Quickly deploy at scale across your collaboration spaces.
The Q-SYS RoomSuite Modular System enables fast, standardized setup for medium to large collaboration spaces. Designed to work with leading UC platforms and BYOM functionality, it offers a web-based workflow for efficient design, commissioning, and deployment, supported by unified cloud management and remote monitoring through Q-SYS Reflect.

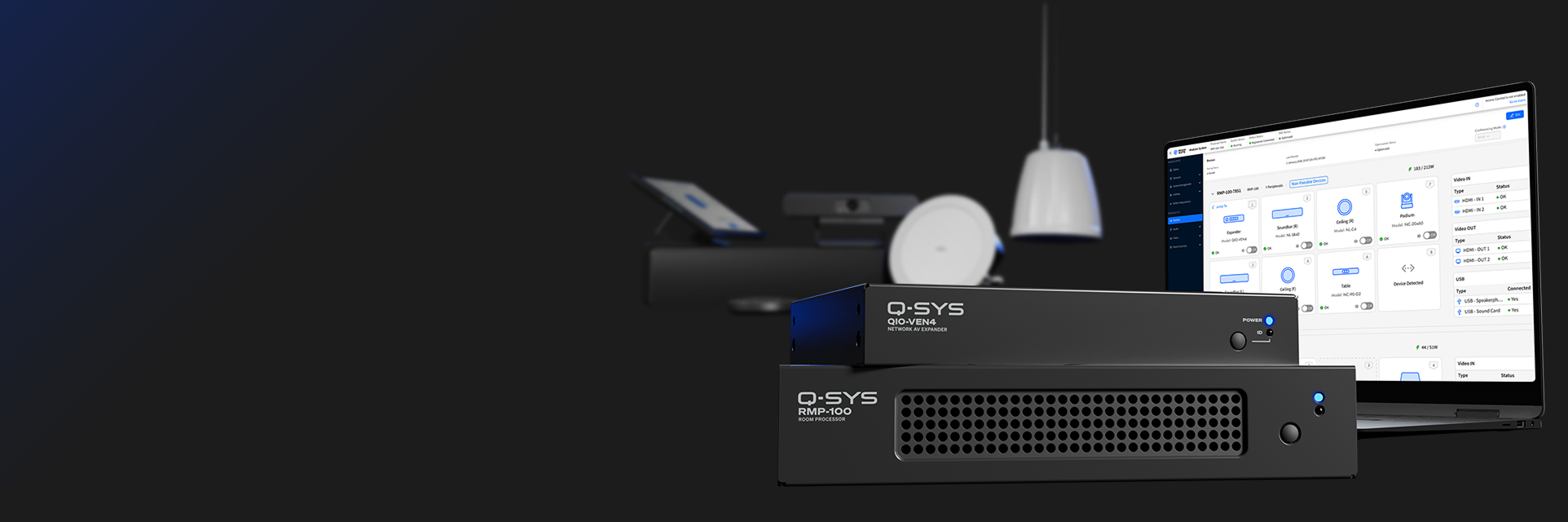

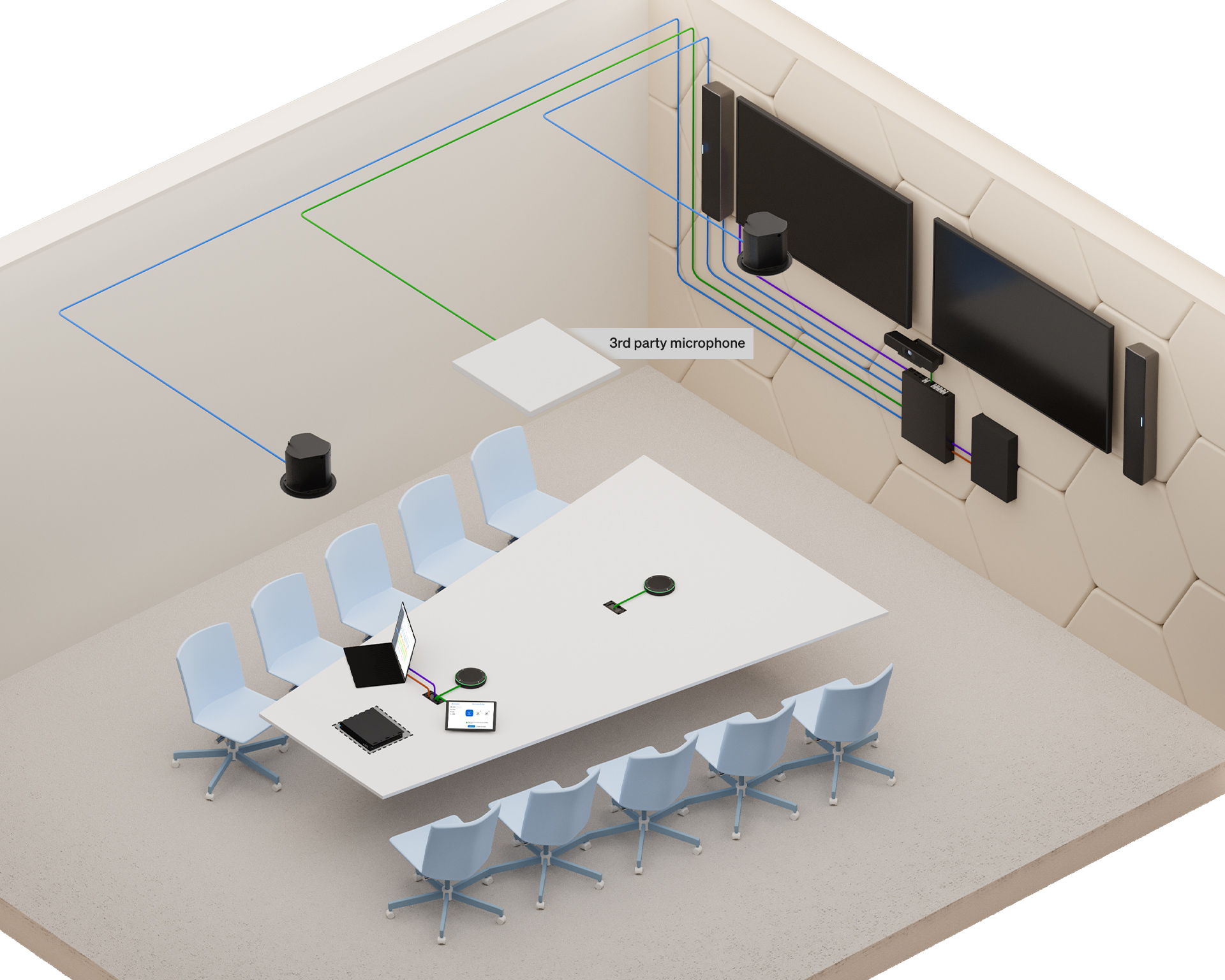

Simplified Hardware, Customizable for your Room
The Q-SYS RoomSuite Modular System’s RMP-100 processor and QIO-VEN4 expander deliver an integrated hardware foundation for audio processing, networking, video distribution, AV bridging, and display control while supporting a scalable portfolio of Q-SYS networked collaboration peripherals to tailor each system to your room’s specific needs.
Simplified Configuration (not programming)

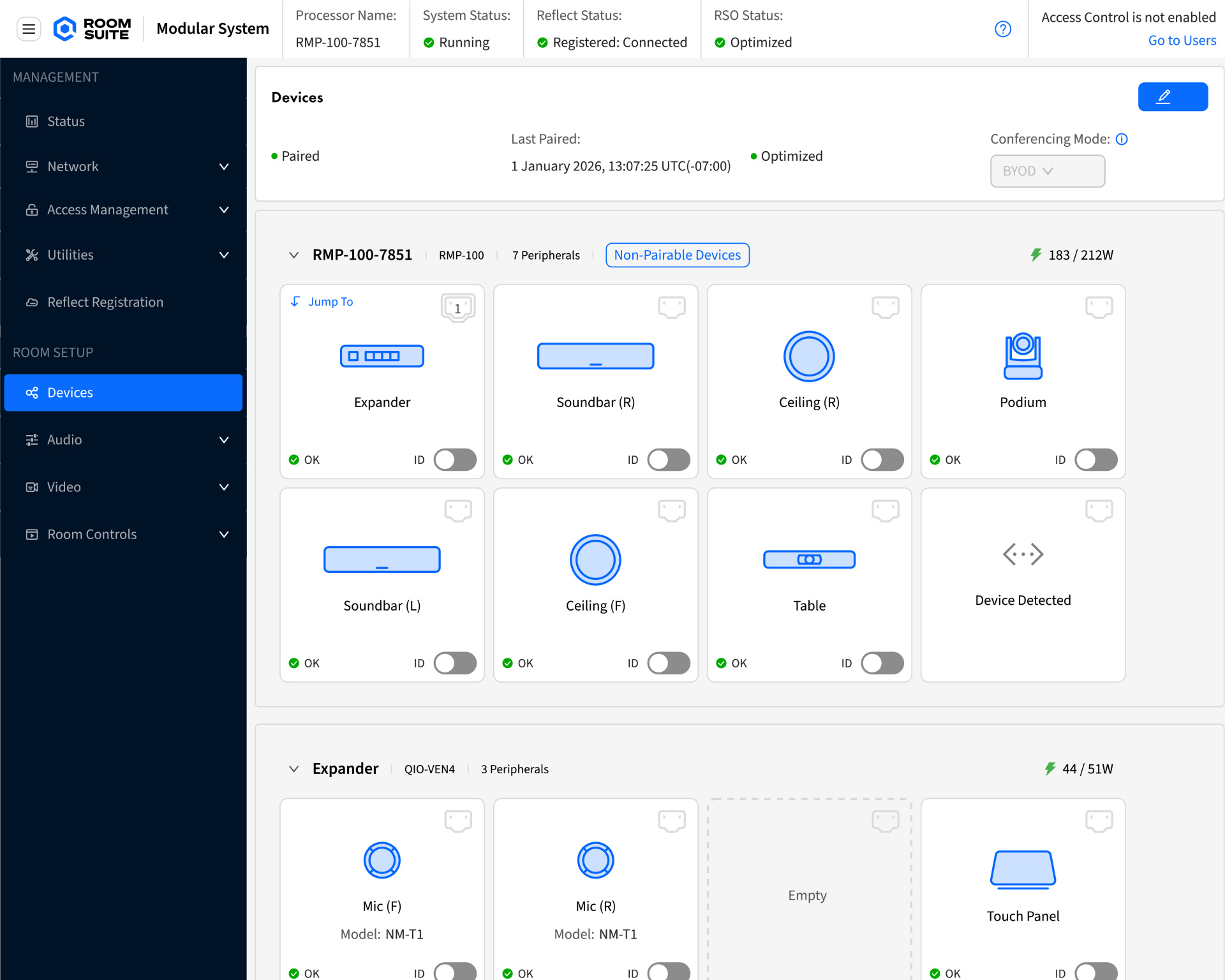

Using a streamlined, web-based workflow, the Q-SYS RoomSuite Modular System accelerates deployment and commissioning through no-code configuration. Quickly complete device discovery, video I/O setup, room audio optimization, and automatic user control interface generation all without traditional programming.

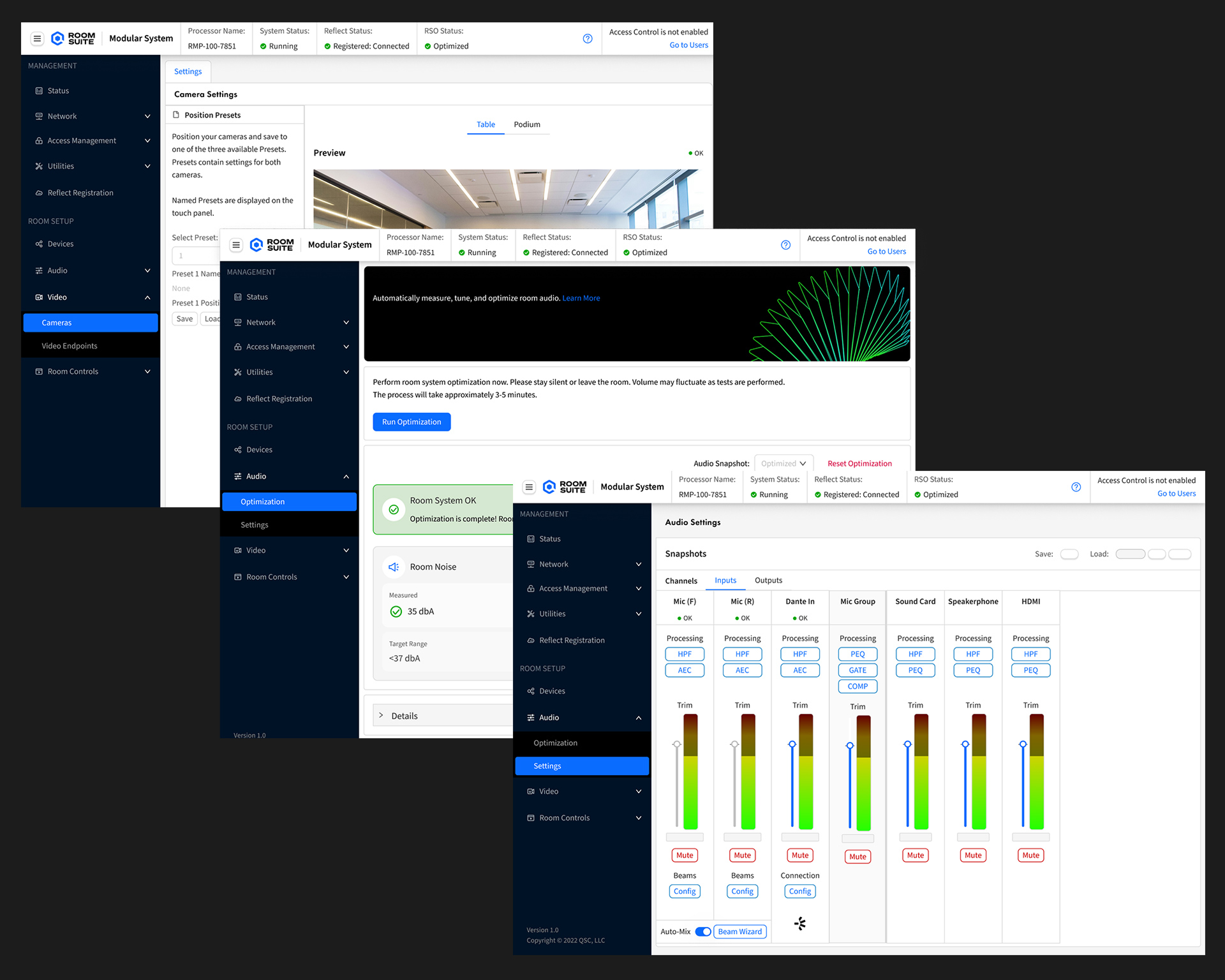

Everything You Want In One Place
Whether you are positioning your cameras, setting audio levels, or using Room System Optimization to fine-tune your conference room, you’ll find everything you need in the Q-SYS RoomSuite Modular System.

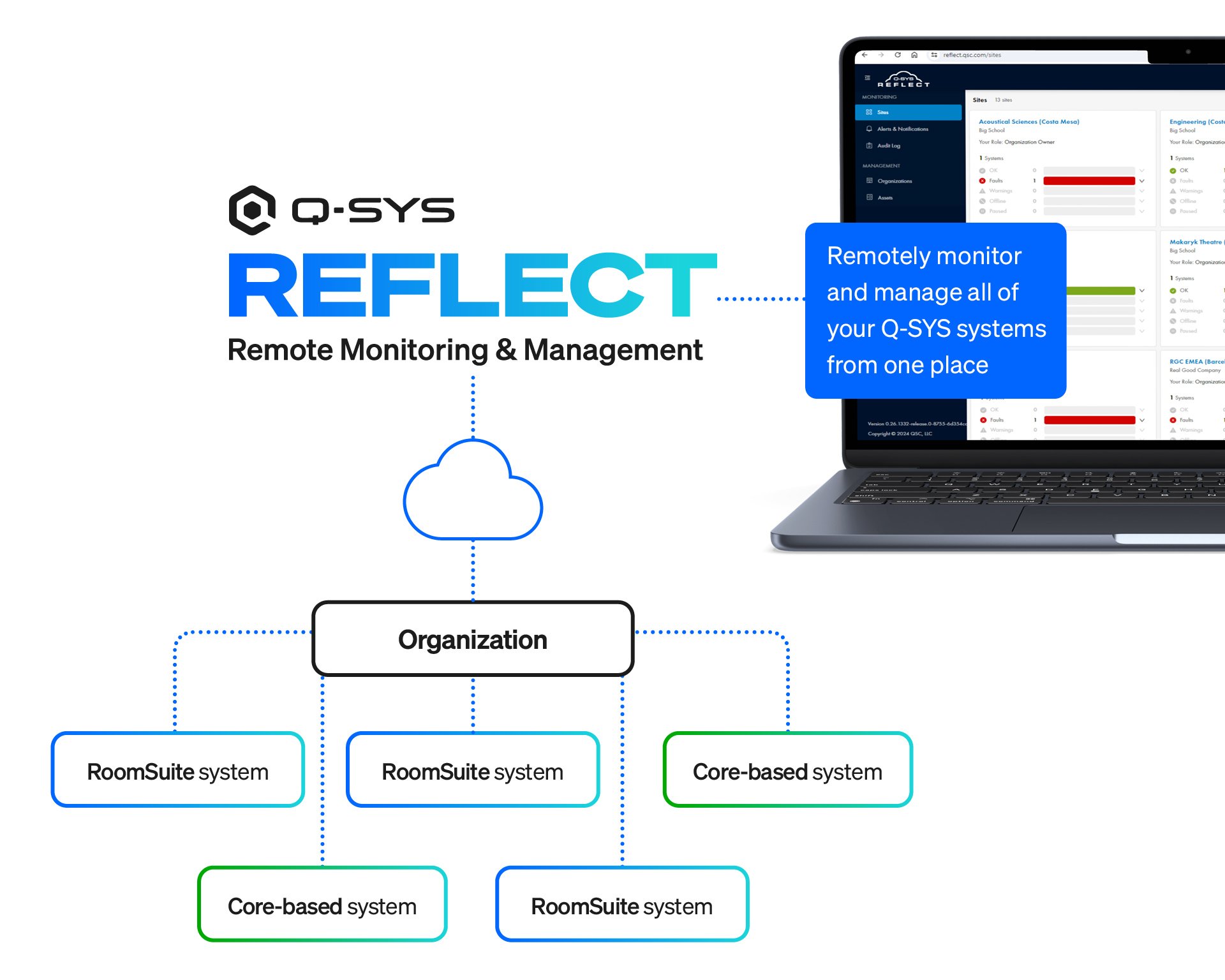

Simplified System Management
By integrating Q-SYS Reflect, remotely monitor and manage all Q-SYS spaces including Q-SYS RoomSuite and Core-based systems from a single interface. Deploy presets to Q-SYS RoomSuite Modular Systems and perform bulk firmware updates remotely to simplify ongoing system maintenance at scale.
SYSTEM COMPONENTS
| Model | RMP-100 | |||
| Ethernet ports | ||||
| AV LAN Ethernet ports | 7x 1 Gbps ports, PoE+ output | |||
| Expander Ethernet port | 1x 1 Gbps port, PoE++ output (IEEE 802.3bt Type 4) | |||
| External Ethernet ports | 2x Auxiliary ports (No PoE power) | |||
| PoE power budget | 212 W total, all ports (IEEE 802.3bt Type 4) | |||
| ビデオ I／O | ||||
| 入力 | 1x HDMI 2.0 input (BYOM: 4k60 capable with audio; ZR/MTR: 1080p60 capable with audio) 1x HDMI 2.0 input (BYOM: 4k60 capable with no audio; ZR/MTR: 1080p60 capable with no audio) | |||
| Output | 2x HDMI 2.0 outputs (BYOM: 4k60 capable; ZR/MTR: 1080p60 capable) | |||
| コントロール | ||||
| RS-232 | 2 ports for display control | |||
| GPIO | 1 input (occupancy sensor connectivity, +24 V / 50 mA) | |||
| CEC | Supported on HDMI video outputs | |||
| USB接続 | ||||
| USB接続 | 1x USB-C port 1x USB-A (not supported) | |||
| Controls & indicators | ||||
| フロント | Power LED ID Button and indicator | |||
| RF antenna | Not supported | |||
| 電源 | ||||
| Included 54 V DC Power Supply | 100 - 240 VAC, ~50 / 60 Hz, 4A Max | |||
| 物理仕様 | ||||
| 製品寸法（L x W x H） | 10.5 x 8.6 x 8.7 in (266 x 217 mm x 220 mm) | |||
| 製品重量 | 4.30 lbs (1.95 kg) | |||
| 出荷時梱包寸法（L x W x H） | 19.1 x 13.6 x 3.5 in (485 x 345 x 89 mm) | |||
| 付属品 | Removable rack ears 54 V DC Power Supply 1x AC mains power cords (country specific) I/O connector Regulatory and safety pamphlet Warranty statement | |||
| Environmental & safety | ||||
| 保存温度範囲 | -4° to 158° F (-20° to 70° C) | |||
| 保存湿度範囲 | 5% - 85% | |||
| 動作温度範囲 | 32° to 104° F (0° to 40° C) | |||
| 動作湿度範囲 | 5% - 85% | |||
| Thermal dissipation (excluding POE Loads) | 69 BTU / hour (20 W) | |||
| Power consumption (including POE loads) | 200 W typical, 245 W maximum | |||
| Battery chemistry | Lithium Carbon Monofluoride | |||
| Model | QIO-VEN4 | |||
| HDMI | ||||
| 入力 | 1x HDMI 2.0 input (1080p60 capable + Audio) | |||
| Ethernet ports | ||||
| AV LAN Ethernet ports | 4x 1 Gbps, PoE+ output | |||
| Processor (RMP-100) Ethernet port | 1x 1 Gbps, PD PoE++ (IEEE 802.3at Type 2) | |||
| PoE power budget | 51 W total, ports 1-4 | |||
| USB接続 | ||||
| USB接続 | 1 x USB-C with DP-Alt mode support (1080p60) 1x USB-A (not supported) | |||
| Controls & indicators | ||||
| フロント | Power LED ID Button and indicator | |||
| その他 | ||||
| Headset | Not supported | |||
| 物理仕様 | ||||
| 製品寸法（L x W x H） | 7.3 x 5.2 x 1.2 in (185 x 133 x 31 mm) | |||
| 製品重量 | 1.72 lbs (780 g) | |||
| 出荷時梱包寸法（L x W x H） | 13.3 x 7.3 x 1.8 in (338 x 186 x 45 mm) | |||
| 付属品 | Surface mounting accessories Cable strain relief Safety and warranty statements | |||
| 電源 | ||||
| Power-over-Ethernet (supplied by RMP-100 processor) | PoE++ (IEEE 802.3bt Type 4) | |||
| Environmental & safety | ||||
| 保存温度範囲 | -4° to 158° F (-20° to 70° C) | |||
| 保存湿度範囲 | 5% - 85% | |||
| 動作温度範囲 | 32° to 104° F (0° to 40° C) | |||
| 動作湿度範囲 | 5% - 85% | |||
| Thermal dissipation (excluding POE Loads) | 51 BTU / hour (15 W) | |||
| Power consumption (including POE loads) | 55 W typical, 70 W maximum | |||
| タイトル | |
|

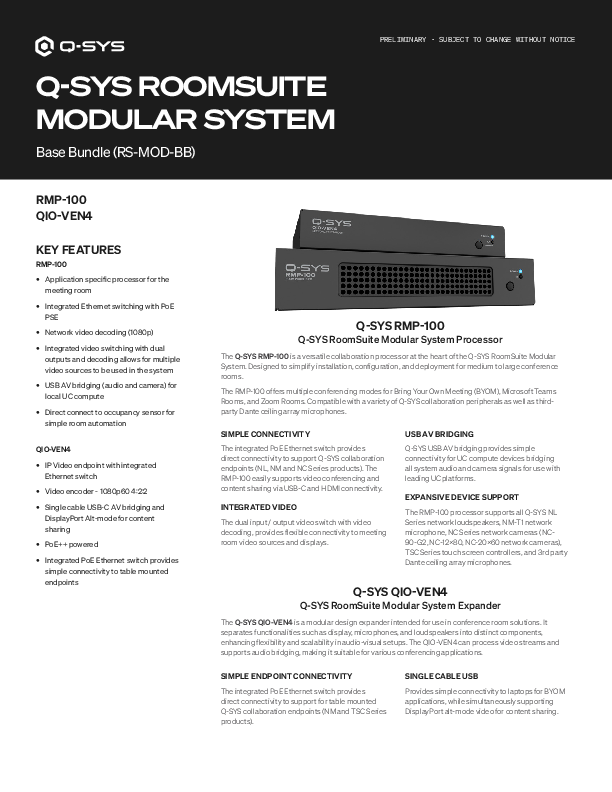

RoomSuite Modular System Specifications Sheet
Specifications sheet for RoomSuite Modular System
|
